IS67WVH8M8BLL Datasheet - ISSI

IS67WVH8M8BLL 8M x 8 HyperRAM

4 2. HyperRAM Product Overview 7 3. HyperRAM Signal Descriptions 8 3.1 Input/Output Summary 8 3.2 Command/Address Bit Assignments 9 3.3 Read Transactions 13 3.4 Write Transactions with Initial Latency (Memory Core Write) 14 3.5 Write Transactions without Initial Latency (Register Write) 16 4. Me.
8M x 8 HyperRAMâ„¢ IS66WVH8M8ALL/BLL IS67WVH8M8ALL/BLL 6(37(0%(5 201 Overview The IS66/67WVH8M8ALL/BLL are integrated memory device containing 64Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 8M words by 8 bits. The device supports a HyperBus interface, Very Low Signal Count (Address, Command and data through 8 DQ pins), Hidden Refresh Operation, and Automotive Temperature Operation, designed specially for Mobile and Automotive applications. Distinctive Ch.

IS67WVH8M8BLL Datasheet (1.79 MB)

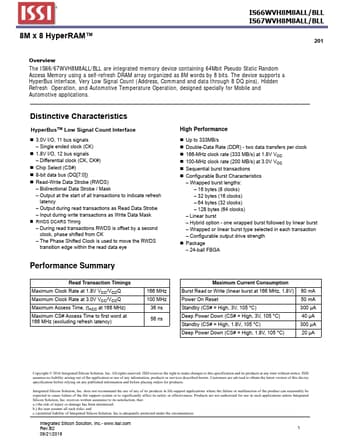

Preview of IS67WVH8M8BLL PDF
IS67WVH8M8BLL Datasheet Preview Page 2 IS67WVH8M8BLL Datasheet Preview Page 3

Datasheet Details

Part number:

IS67WVH8M8BLL

Manufacturer:

ISSI

File Size:

1.79 MB

Description:

8m x 8 hyperram.
