K5A2 - Snap Action Key Switch Switch

Datasheet Summary

Features

  • Benefits.
  • Quiet actuation.
  • Space Saving.
  • RoHS compliant Typical.

📥 Download Datasheet

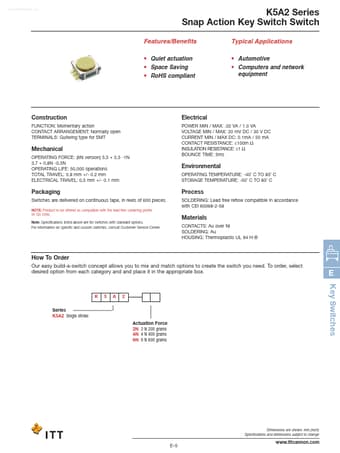

Datasheet preview – K5A2

Datasheet Details

Part number K5A2
Manufacturer ITT Industries
File Size 212.96 KB
Description Snap Action Key Switch Switch
Datasheet download datasheet K5A2 Datasheet
Additional preview pages of the K5A2 datasheet.

📁 Similar Datasheet

  • K5A3240YBC-T755 - Multi-Chip Package MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 4M(512Kx8/256Kx16) Full CMOS SRAM (Samsung semiconductor)
  • K5A3240YBC-T855 - Multi-Chip Package MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 4M(512Kx8/256Kx16) Full CMOS SRAM (Samsung semiconductor)
  • K5A3240YT - Multi-Chip Package MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 4M(512Kx8/256Kx16) Full CMOS SRAM (Samsung semiconductor)
  • K5A3240YTC-T755 - Multi-Chip Package MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 4M(512Kx8/256Kx16) Full CMOS SRAM (Samsung semiconductor)
  • K5A3240YTC-T855 - Multi-Chip Package MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 4M(512Kx8/256Kx16) Full CMOS SRAM (Samsung semiconductor)
  • K5A3280YBC-T755 - MCP MEMORY (Samsung semiconductor)
  • K5A3280YBC-T855 - MCP MEMORY (Samsung semiconductor)
  • K5A3280YTC-T755 - MCP MEMORY (Samsung semiconductor)
  • K5A3280YTC-T855 - MCP MEMORY (Samsung semiconductor)
  • K5A3340YBC-T755 - Multi-Chip Package MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 4M(512Kx8/256Kx16) Full CMOS SRAM (Samsung semiconductor)
Other Datasheets by ITT Industries

    Full PDF Text Transcription

    Click to expand full text
    www.DataSheet4U.com K5A2 Series Snap Action Key Switch Switch Features/Benefits • Quiet actuation • Space Saving • RoHS compliant Typical Applications • Automotive • Computers and network equipment Construction FUNCTION: Momentary action CONTACT ARRANGEMENT: Normally open TERMINALS: Gullwing type for SMT Electrical POWER MIN / MAX: .02 VA / 1.0 VA VOLTAGE MIN / MAX: 20 mV DC / 30 V DC CURRENT MIN / MAX DC: 0.1mA / 50 mA CONTACT RESISTANCE: ≤100m Ω INSULATION RESISTANCE: ≤1 Ω BOUNCE TIME: 5ms Mechanical OPERATING FORCE: (6N version) 5,5 + 0,5 -1N 3,7 + 0,8N -0,5N OPERATING LIFE: 50,000 operations TOTAL TRAVEL: 0.8 mm +/- 0.2 mm ELECTRICAL TRAVEL: 0,5 mm +/- 0.
