KSB-0 - Low-profile Tact Switch

This page provides the datasheet information for the KSB-0, a member of the KSB Low-profile Tact Switch family.

Datasheet Summary

Features

  • Benefits.
  • Low profile.
  • Protected against flux.
  • KSB without top sealing.
  • KSF with top sealing.
  • RoHS compliant and compatible Typical.

📥 Download Datasheet

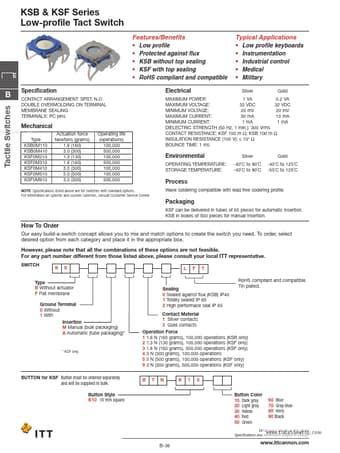

Datasheet preview – KSB-0

Datasheet Details

Part number KSB-0
Manufacturer ITT Industries
File Size 209.79 KB
Description Low-profile Tact Switch
Datasheet download datasheet KSB-0 Datasheet
Additional preview pages of the KSB-0 datasheet.

📁 Similar Datasheet

  • KSB0505HA-G303 - DC FAN (DELTA)
  • KSB1015 - PNP Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • KSB1015 - PNP Transistor (INCHANGE)
  • KSB1017 - PNP Silicon Epitaxial Transistor (Fairchild Semiconductor)
  • KSB1017 - PNP Transistor (INCHANGE)
  • KSB1022 - PNP Silicon Darlington Transistor (Fairchild Semiconductor)
  • KSB1023 - PNP Silicon Darlington Transistor (Fairchild Semiconductor)
  • KSB1097 - PNP Transistor (INCHANGE)
  • KSB1097 - Low Frequency Power Amplifier (Fairchild Semiconductor)
  • KSB1098 - Low Frequency Power Amplifier (Fairchild Semiconductor)
Other Datasheets by ITT Industries
  • KSB-1 - Low-profile Tact Switch
  • KSB - Low-profile Tact Switch

Full PDF Text Transcription

Click to expand full text
KSB & KSF Series Low-profile Tact Switch Features/Benefits • Low profile • Protected against flux • KSB without top sealing • KSF with top sealing • RoHS compliant and compatible Typical Applications • Low profile keyboards • Instrumentation • Industrial control • Medical • Military Silver Gold 0.2 VA 32 VDC 20 mV 10 mA 1 mA Ω B Tactile Switches Specification CONTACT ARRANGEMENT: SPST, N.O. DOUBLE OVERMOLDING ON TERMINAL MEMBRANE SEALING TERMINALS: PC pins Electrical Mechanical Type KSB0M110 KSB0M410 KSF0M210 KSF0M310 KSF0M410 KSF0M510 KSF0M910 Actuation force Newtons (grams) 1.6 (160) 3.0 (300) 1.3 (130) 1.6 (160) 3.0 (300) 5.0 (500) 3.0 (300) Operating life (operations) 100,000 500,000 100,000 500,000 100,000 100,000 500,000 www.DataSheet4U.
