DSEI2x61-12B, Fast Recovery Epitaxial Diode

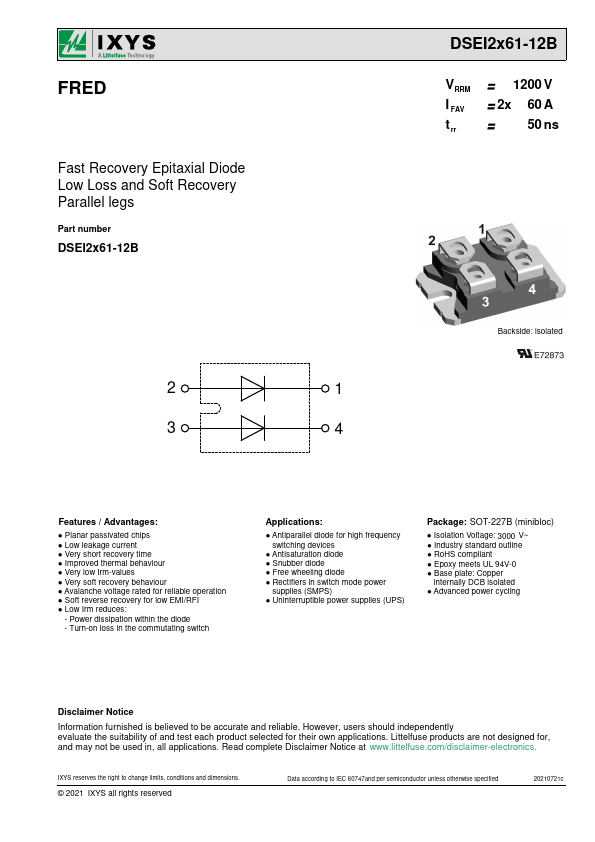

FRED Fast Recovery Epitaxial Diode Low Loss and Soft Recovery Parallel legs Part number DSEI2x61-12B 2 1 3 4 DSEI2x61-12B VRRM I FAV t rr = 120.

Features

* / Advantages:
* Planar passivated chips
* Low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI
* Lo

Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode
* Rectifiers in switch mode power supplies (SMPS)

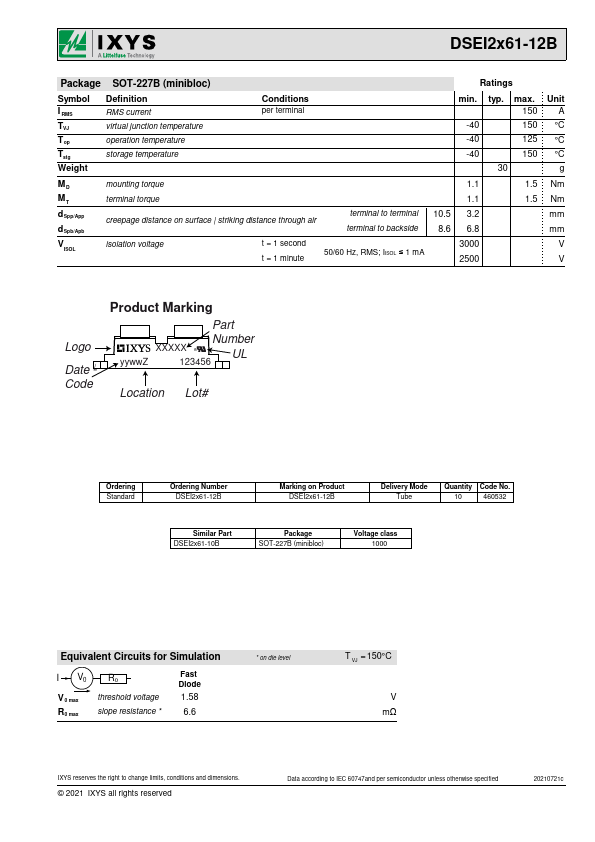

* Uninterruptible power supplies (UPS) Package: SOT-227B (minibloc)
* Isolation Voltage: 3000 V~
