DSEI2x61-06C, DSEI2x61-06C-1 - Fast Recovery Epitaxial Diode

IXYS

📥 Download Datasheet

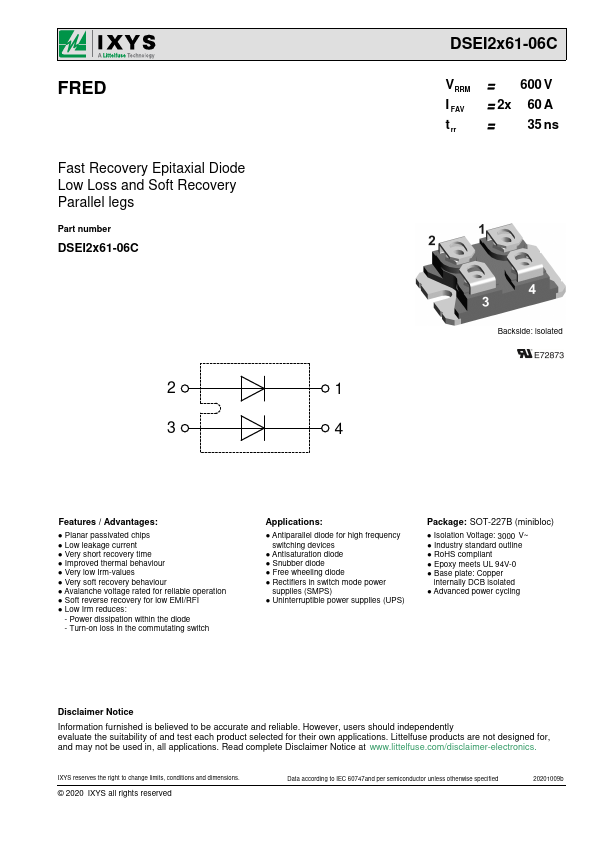

DSEI2x61-06C Datasheet Preview — This datasheet PDF includes multiple part numbers: DSEI2x61-06C, DSEI2x61-06C-1. Please refer to the document for exact specifications by model.

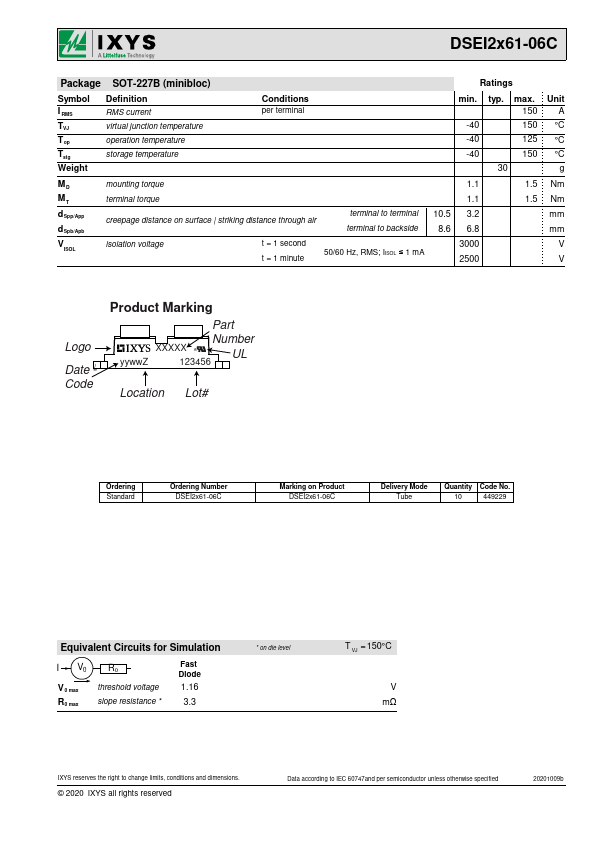

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DSEI2x61-06C, DSEI2x61-06C-1
Manufacturer	IXYS
File Size	508.15 KB
Description	Fast Recovery Epitaxial Diode
Datasheet	DSEI2x61-06C-1-IXYS.pdf
Note	This datasheet PDF includes multiple part numbers: DSEI2x61-06C, DSEI2x61-06C-1. Please refer to the document for exact specifications by model.

DSEI2x61-06C Product details

Features

/ Advantages:.
Planar passivated chips.
Low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
