DSEI2X101 Fast Recovery Epitaxial Diode (FRED)

www.DataSheet4U.com Fast Recovery Epitaxial Diode (FRED) DSEI 2x 101 VRRM = 600 V IFAVM = 2x 96 A trr = 35 ns VRSM V 600 VRRM V 600 Type miniBLOC, SOT-227 B E72873 DSEI 2x 101-06A Symbol IF(RMS) IF(AV)M x IFRM IFSM Test Conditions Maximum Ratings (per diode) 150 96 TBD 1200 1300 1080 1170 7200 7100 5800 5700 -40+150 150 -40+150 A A A A A A A A2s A2s A2s A2s °C °C °C W V~ Nm/lb.in. Nm/lb.in. g TVJ = TVJM TC = 70°C; rectangular, d = 0.5 tP < 10 ms; rep. rating, pulse width limited by T.

DSEI2X101 Features

* International standard package miniBLOC (ISOTOP compatible) Isolation voltage 2500 V~ matched diodes f. parallel operation Planar passivated chips two independent diodes Very short recovery time Extremely low switching losses Low IRM-values Soft recovery behaviour q q q q q q q q q q TVJ = 150°C; t

DSEI2X101 Datasheet (547.92 KB)

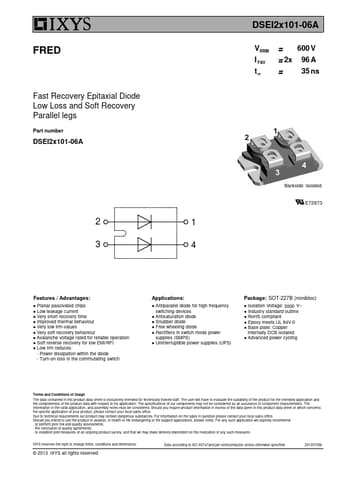

Preview of DSEI2X101 PDF
DSEI2X101 Datasheet Preview Page 2 DSEI2X101 Datasheet Preview Page 3

Datasheet Details

Part number:

DSEI2X101

Manufacturer:

IXYS Corporation

File Size:

547.92 KB

Description:

Fast recovery epitaxial diode (fred).
