DSEI2X30 Datasheet - IXYS Corporation

DSEI2X30, Fast Recovery Epitaxial Diode

Fast Recovery Epitaxial Diode (FRED) DSEI 2x30 DSEI 2x31 IFAVM = 2x30 A VRRM = 600 V trr = 35 ns VRSM V 600 600 VRRM V 600 600 Type DSEI 2x 30-0.

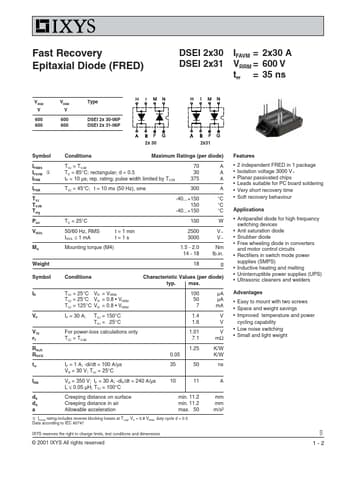

datasheet Preview Page 1 from Datasheet4u.com

DSEI2X30_IXYSCorporation.pdf

DSEI2X30 Datasheet Preview — Preview of DSEI2X30 PDF

Datasheet Details

Part number:

DSEI2X30

Manufacturer:

IXYS Corporation

File Size:

169.05 KB

Description:

Fast Recovery Epitaxial Diode

Features

* 2 independent FRED in 1 package Isolation voltage 3000 V~ Planar passivated chips Leads suitable for PC board soldering Very short recovery time Soft recovery behaviour A A A A °C °C °C W V~ V~ Nm lb. in. g Symbol IFRMS IFAVM ① IFRM IFSM TV

Applications

* Antiparallel diode for high frequency switching devices
* Anti saturation diode
* Snubber diode
* Free wheeling diode in converters and motor control circuits
* Rectifiers in switch mode power supplies (SMPS)
* Inductive heating and melting
