DSEI2x30-06P, DSEI2X30 - Fast Recovery Epitaxial Diode

DSEI2x30-06P Description

Fast Recovery Epitaxial Diode (FRED) DSEI 2x30 DSEI 2x31 IFAVM = 2x30 A VRRM = 600 V trr = 35 ns VRSM V 600 600 VRRM V 600 600 Type DSEI 2x 30-06.

DSEI2x30-06P Features

* 2 independent FRED in 1 package
* Isolation voltage 3000 V~
* Planar passivated chips
* Leads suitable for PC board soldering
* Very short recovery time

DSEI2x30-06P Applications

* Antiparallel diode for high frequency switching devices
* Anti saturation diode
* Snubber diode
* Free wheeling diode in converters and motor control circuits
* Rectifiers in switch mode power supplies (SMPS)
* Inductive heating and melting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DSEI2x30-06P, DSEI2X30. Please refer to the document for exact specifications by model.

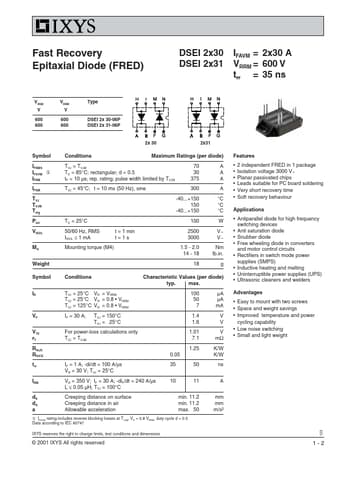

datasheet Preview Page 2

Datasheet Details

Part number
DSEI2x30-06P, DSEI2X30
Manufacturer
IXYS Corporation
File Size
169.05 KB
Datasheet
DSEI2X30_IXYSCorporation.pdf
Description
Fast Recovery Epitaxial Diode
Note
This datasheet PDF includes multiple part numbers: DSEI2x30-06P, DSEI2X30.
Please refer to the document for exact specifications by model.
