DSEI2x30-12B

Fast Recovery Epitaxial Diode

DSEI2x30-12B Features

* E72873

* International standard package miniBLOC (ISOTOP compatible)

* Isolation voltage 2500 V~

* 2 independent FRED in 1 package

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour Appli

DSEI2x30-12B Datasheet (189.35 KB)

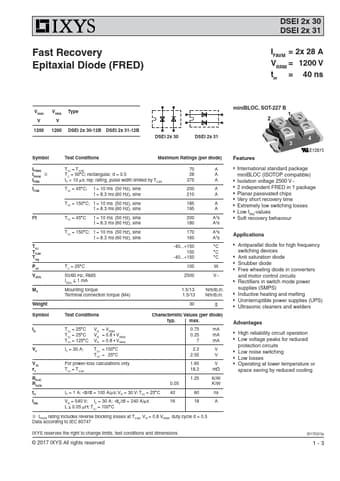

Preview of DSEI2x30-12B PDF

Datasheet Details

Part number:

DSEI2x30-12B

Manufacturer:

IXYS Corporation

File Size:

189.35 KB

Description:

Fast recovery epitaxial diode.
Fast Recovery Epitaxial Diode (FRED) DSEI 2x 30 DSEI 2x 31 IFAVM = 2x 28 A VRRM = 1200 V trr = 40 ns VRSM V 1200 VRRM V Type 1200 DSEI 2x 30-12B .
