DSEI2x30-06C Fast Recovery Epitaxial Diode

IXYS

Description

FRED Fast Recovery Epitaxial Diode Low Loss and Soft Recovery Anti-parallel legs Part number DSEI2x30-06C 2 1 DSEI2x30-06C VRRM I FAV t rr = 600 .

📥 Download Datasheet

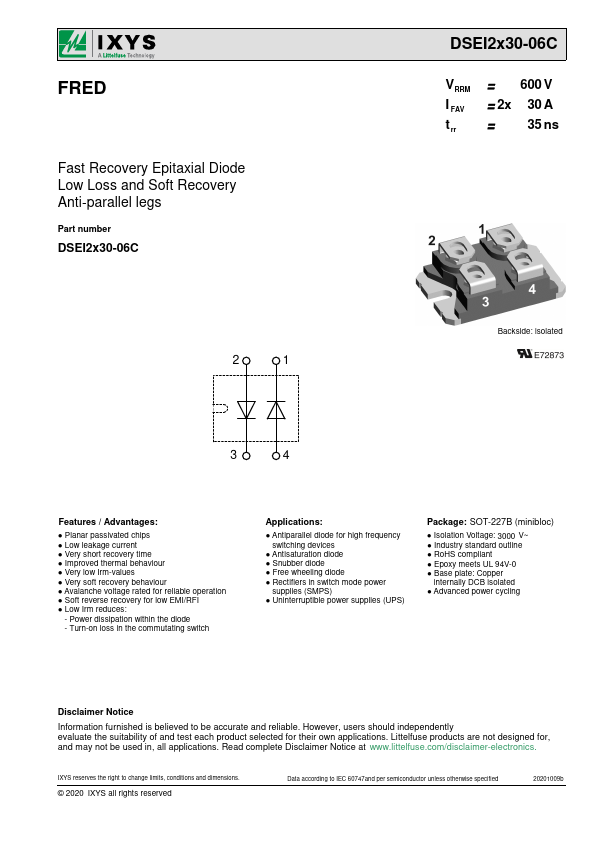

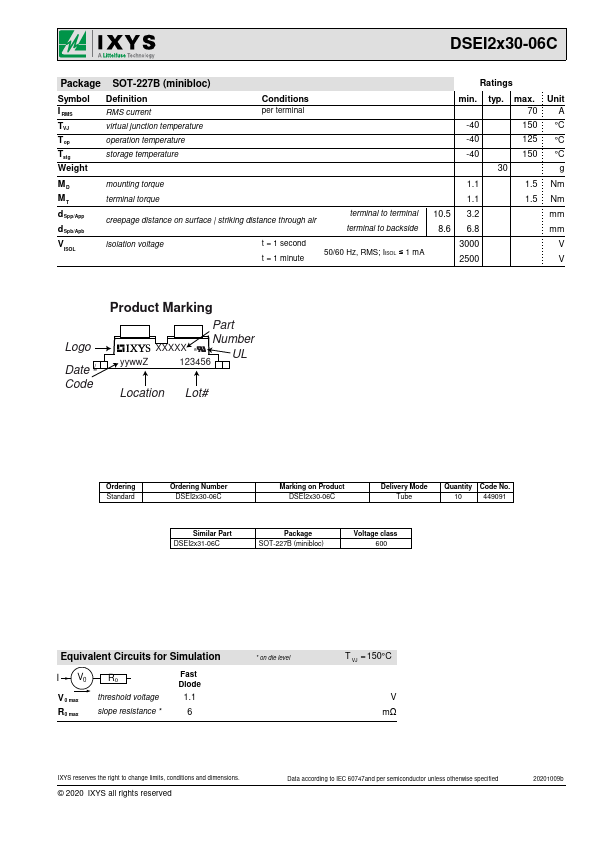

DSEI2x30-06C Datasheet Preview — Preview of DSEI2x30-06C PDF

Datasheet Specifications

Part number: DSEI2x30-06C
Manufacturer: IXYS
File Size: 525.09 KB
Datasheet: DSEI2x30-06C-IXYS.pdf
Description: Fast Recovery Epitaxial Diode

Features

* / Advantages:
* Planar passivated chips
* Low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI
* Lo

Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode
* Rectifiers in switch mode power supplies (SMPS)
* Uninterruptible power supplies (UPS) Package: SOT-227B (minibloc)
* Isolation Voltage: 3000 V~
