DSEI2x61-12P

Fast Recovery Epitaxial Diode

DSEI2x61-12P Features

* 2 independent FRED in 1 package

* Isolation voltage 3000 V~

* Planar passivated chips

* Leads suitable for PC board soldering

* Very short recovery time

* Soft recovery behaviour Applications

* Antiparallel diode for high frequency switching

DSEI2x61-12P Datasheet (133.78 KB)

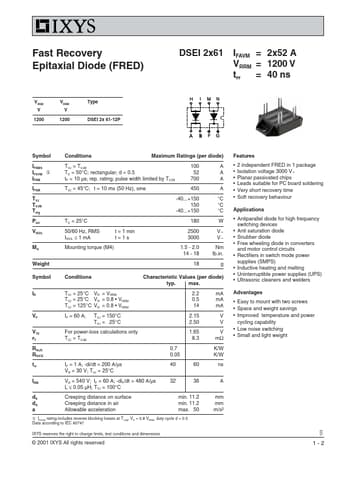

Preview of DSEI2x61-12P PDF

Datasheet Details

Part number:

DSEI2x61-12P

Manufacturer:

IXYS Corporation

File Size:

133.78 KB

Description:

Fast recovery epitaxial diode.
Fast Recovery Epitaxial Diode (FRED) DSEI 2x61 IFAVM = 2x52 A VRRM = 1200 V trr = 40 ns VRSM V 1200 VRRM V 1200 Type DSEI 2x 61-12P Symbol IFRM.
