DSSK28-006BS Power Schottky Rectifier

www.DataSheet4U.com DSSK 28-006B DSSK 28-006BS IFAV = 2x15 A VRRM = 60 V VF = 0.52 V Power Schottky Rectifier with common cathode Preliminary Data VRSM V 60 60 VRRM V 60 60 Type TO-220 AB (B-Type) A C A A C A C (TAB) DSSK 28-006B DSSK 28-006BS TO-263 AB (BS-Type) A A C (TAB) A = Anode, C = Cathode , TAB = Cathode Symbol IFRMS IFAV IFAV IFSM EAS IAR (dv/dt)cr TVJ TVJM Tstg Ptot Md Weight Conditions TC = 135°C; rectangular, d = 0.5 TC = 135°C; rectangular, d = 0.5; per device TVJ = 45°C.

DSSK28-006BS Features

* International standard package

* Very low VF

* Extremely low switching losses

* Low IRM-values

* Epoxy meets UL 94V-0 Applications

* Rectifiers in switch mode power supplies (SMPS)

* Free wheeling diode in low voltage converters TC = 25°C m

DSSK28-006B_IXYSCorporation.pdf

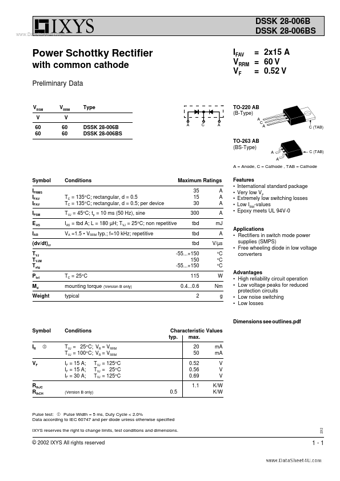

DSSK28-006BS Datasheet Preview — This datasheet PDF includes multiple part numbers: DSSK28-006BS, DSSK28-006B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DSSK28-006BS, DSSK28-006B

Manufacturer:

IXYS Corporation

File Size:

165.85 KB

Description:

Power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: DSSK28-006BS, DSSK28-006B.
Please refer to the document for exact specifications by model.
