IXDF402 (IXDx402) 2 Ampere Dual Low-Side Ultrafast MOSFET Drivers

The IXDN402/IXDI402/IXDF402 consists of two 2 Amp CMOS high speed MOSFET drivers. Each output can source and sink 2A of peak current while producing voltage rise and fall times of less than 15ns to drive the latest IXYS MOSFETs & IGBTs. The input of the driver is TTL or CMOS compatible and is fully .

IXDF402 Features

* Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes

* Latch-Up Protected Over Entire Operating Range

* High Peak Output Current: 2A Peak

* Wide Operating Range: 4.5V to 25V www.DataSheet4U.com

* High Capacitive Load Drive Capabili

IXDN402_IXYSCorporation.pdf

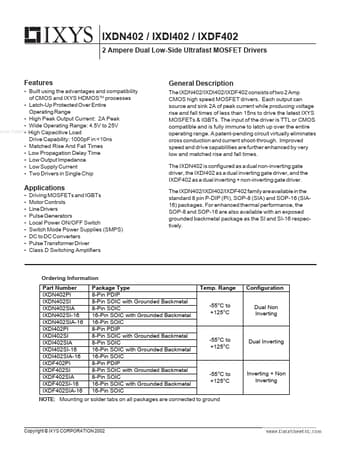

IXDF402 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXDF402, IXDN402. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXDF402, IXDN402

Manufacturer:

IXYS Corporation

File Size:

346.21 KB

Description:

(ixdx402) 2 ampere dual low-side ultrafast mosfet drivers.

Note:

This datasheet PDF includes multiple part numbers: IXDF402, IXDN402.
Please refer to the document for exact specifications by model.
