IXD5121 - Voltage Detector

Product Overview

IXYS

Datasheet Details

Part number	IXD5121
Manufacturer	IXYS
File Size	1.47 MB
Description	Voltage Detector
Datasheet	IXD5121 Datasheet

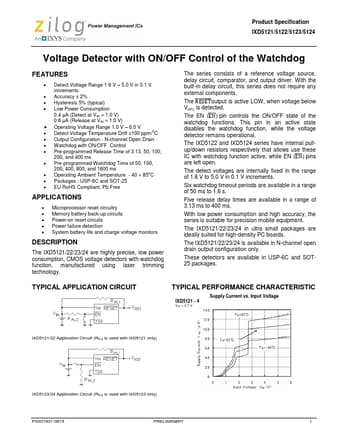

Additional preview pages of the IXD5121 datasheet.

Product details

Description

The IXD5121/22/23/24 are highly precise, low power consumption, CMOS voltage detectors with watchdog function, manufactured using laser trimming technology.

Features

Detect Voltage Range 1.6 V.
5.0 V in 0.1 V increments.
Accuracy ± 2%.
Hysteresis 5% (typical).
Low Power Consumption 0.4 μA (Detect at VIN = 1.0 V) 0.6 µA (Release at VIN = 1.0 V).
Operating Voltage Range 1.0 V.
6.0 V.
Detect Voltage Temperature Drift ±100 ppm/0C.
Output Configuration - N-channel Open Drain.
Watchdog with ON/OFF Control.
Pre-programmed Release Time of 3.13, 50, 100, 200, and 400 ms.
Pre-programmed Watchdog Time.
