IXD604 Datasheet, Drivers, Clare

IXD604 Features

  • Drivers
  • 4A Peak Source/Sink Drive Current
  • Wide Operating Voltage Range: 4.5V to 35V
  • -55°C to +125°C Extended Operating Temperature Range
  • Logic Input With

PDF File Details

Part number:

IXD604

Manufacturer:

Clare

File Size:

252.59kb

Download:

📄 Datasheet

Description:

4-ampere dual low-side ultrafast mosfet drivers. The IXDD604/IXDF604/IXDI604/IXDN604 dual high-speed gate drivers are especially well suited for driving the latest IXYS MOSFETs and I

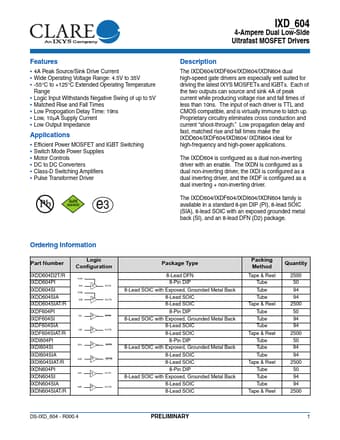

Datasheet Preview: IXD604 📥 Download PDF (252.59kb)
Page 2 of IXD604 Page 3 of IXD604

IXD604 Application

  • Applications
  • Efficient Power MOSFET and IGBT Switching
  • Switch Mode Power Supplies
  • Motor Controls
  • DC to DC Co
