IXD611 - High & Low-side Driver

IXD611 Description

IXD611 IXD611 600V, 600 mA High & Low-side Driver for N-Channel MOSFETs and IGBTs .
The IXD611, with its two inputs referenced to ground, has high speed low side and high side gate ouptuts to drive either a pair of N-channel MOSFETs o.

IXD611 Features

* Floating High Side Driver with boot-strap Power supply along with a Low Side Driver.
* Fully operational to 600V
* ± 50V/ns dV/dt immunity
* Gate drive power supply range: 10 - 35V
* Undervoltage lockout for both output drivers
* Outputs are in phase

IXD611 Applications

* Driving MOSFETs and IGBTs in half-bridge circuits High voltage, high side and low side drivers Motor Controls Switch Mode Power Supplies (SMPS) DC to DC Converters Class D Switching Amplifiers Warning: The IXD611 is ESD sensitive. Figure

📥 Download Datasheet

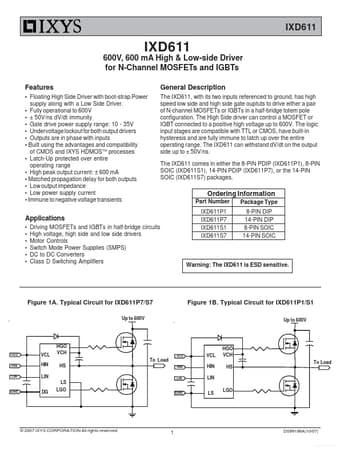

Preview of IXD611 PDF
