IXD604

4-Ampere Dual Low-Side Ultrafast MOSFET Drivers

IXYS

IXD604 Features

* 4A Peak Source/Sink Drive Current

* Wide Operating Voltage Range: 4.5V to 35V

* -40°C to +125°C Extended Operating Temperature Range

* Logic Input Withstands Negative Swing of up to 5V

* Outputs May be Connected in Parallel for Higher Drive Current

IXD604 General Description

The IXDD604/IXDF604/IXDI604/IXDN604 dual high-speed gate drivers are especially well suited for driving the latest IXYS MOSFETs and IGBTs. Each of the two outputs can source and sink 4A of peak current while producing voltage rise and fall times of less than 10ns. The input of each driver is virtual.

IXD604 Datasheet (330.43 KB)

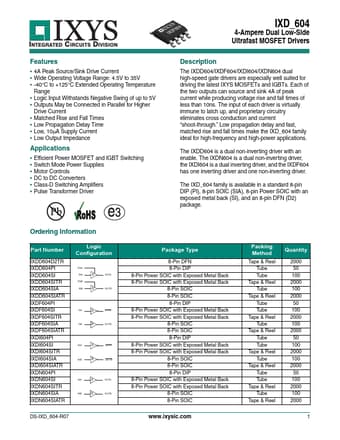

IXD604 Datasheet Preview — Preview of IXD604 PDF

Datasheet Details

Part number:

IXD604

Manufacturer:

IXYS

File Size:

330.43 KB

Description:

4-ampere dual low-side ultrafast mosfet drivers.
