IXD1212 - High Speed LDO Regulator

Product Overview

IXYS

Part number	IXD1212
Manufacturer	IXYS
File Size	1.87 MB
Description	High Speed LDO Regulator
Datasheet	IXD1212 Datasheet
Note	This datasheet PDF includes multiple part numbers: IXD1212, IXD1209. Please refer to the document for exact specifications by model.

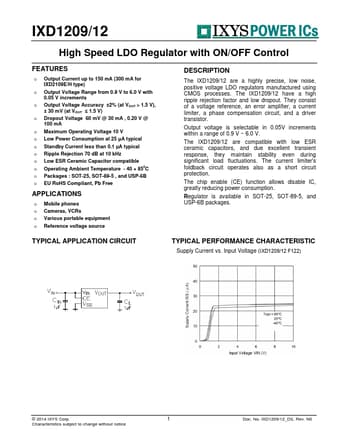

Additional preview pages of the IXD1212 datasheet.

The IXD1209/12 are a highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes.

o Output Current up to 150 mA (300 mA for IXD2109E/H type) o Output Voltage Range from 0.9 V to 6.0 V with 0.05 V increments o Output Voltage Accuracy ±2% (at VOUT > 1.5 V), ± 30 mV (at VOUT ≤ 1.5 V) o Dropout Voltage 60 mV @ 30 mA , 0.20 V @ 100 mA o Maximum Operating Voltage 10 V o Low Power Consumption at 25 µA typical o Standby Current less than 0.1 µA typical o Ripple Rejection 70 dB at 10 kHz o Low ESR Ceramic Capacitor compatible o Operating Ambient Temperature - 40 + 850C o Packages : SO.
