IXGK80N60A HiPerFAST IGBT

Preliminary data HiPerFASTTM IGBT www.datasheet4u.com IXGK80N60A VCES IC25 VCE(sat) tfi = 600 V = 80 A = 2.7 V = 275 ns Symbol VCES VCGR V GES V GEM I C25 I C90 I CM SSOA (RBSOA) PC TJ TJM Tstg Md Weight Test Conditions TJ = 25°C to 150 °C TJ = 25° C to 150°C; R GE = 1 M Ω Continuous Transient TC = 25°C, limited by leads TC = 90°C TC = 25° C, 1 ms VGE = 15 V, TVJ = 125 °C, RG = 10 Ω Clamped inductive load, L = 30 µH TC = 25°C Maximum Ratings TO-264 AA 600 600 ±20 ±30 80 80 200 ICM = 100 @.

IXGK80N60A Features

* International standard package JEDEC TO-264 AA

* Two mached dice connected in parallel

* Low VCE(sat) - for minimum on-state conduction losses

* MOS Gate turn-on - drive simplicity Applications

* AC motor speed control

IXGK80N60A Datasheet (67.02 KB)

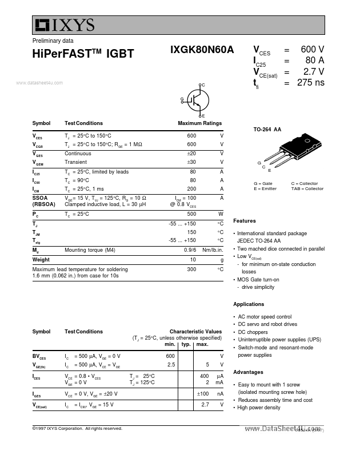

IXGK80N60A Datasheet Preview — Preview of IXGK80N60A PDF

Datasheet Details

Part number:

IXGK80N60A

Manufacturer:

IXYS Corporation

File Size:

67.02 KB

Description:

Hiperfast igbt.
