* C = Collector, TAB = Collector Md Weight Mounting torque (M3) (IXGK) 1.13/10Nm/lb.in. TO-264 AA PLUS247TM 10 6 g g International standard packages JEDEC TO-264 and PLUS247TM
* Low switching losses, low V(sat)
* MOS Gate turn-on - drive simplicity
* Applications Symbol Test Conditio
IXGK35N120C Datasheet (154.58 KB)
IXGK35N120C
IXYS Corporation
154.58 KB
Hiperfast igbt.
www.DataSheet4U.com

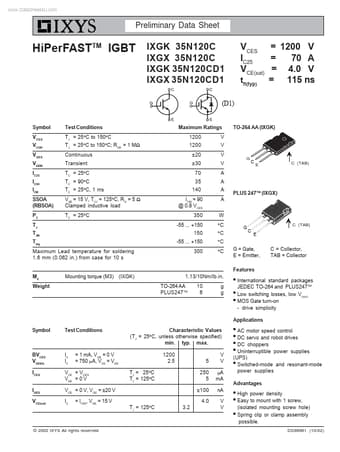

Preliminary Data Sheet
HiPerFASTTM IGBT
IXGK 35N120C IXGX 35N120C IXGK 35N120CD1 IXGX 35N120CD1
(D1)
VCES = 1200 V IC25 = 70 A.
