Datasheet Details
| Part number | IXTP01N100D |
|---|---|
| Manufacturer | IXYS (now Littelfuse) |
| File Size | 384.50 KB |
| Description | N-Channel MOSFET |
| Download | IXTP01N100D Download (PDF) |
|
|

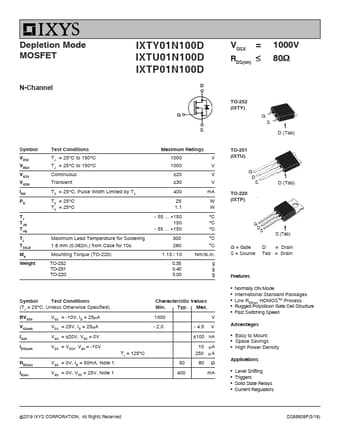

Overview: Depletion Mode MOSFET N-Channel IXTY01N100D IXTU01N100D IXTP01N100D D G S Symbol VDSX VDGX VGSX VGSM IDM PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C Continuous Transient TC = 25C, Pulse Width Limited by TJ TC = 25C TA = 25C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque (TO-220) TO-252 TO-251 TO-220 Maximum Ratings 1000 V 1000 V 20 V 30 V 400 mA 25 W 1.1 W - 55 ... +150 C 150 C - 55 ... +150 C 300 °C 260 °C 1.13 / 10 Nm/lb.in. 0.35 g 0.40 g 3.00 g Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVDSX VGS = -10V, ID = 25A VGS(off) VDS = 25V, ID = 25A IGSX VGS = 20V, VDS = 0V IDSX(off) VDS = VDSX, VGS = -10V RDS(on) ID(on) VGS = 0V, ID = 50mA, Note 1 VGS = 0V, VDS = 25V, Note 1 TJ = 125C Characteristic Values Min. Typ. Max. 1000 V - 2.0 - 4.
Download the IXTP01N100D datasheet PDF. This datasheet also includes the IXTY01N100D variant, as both parts are published together in a single manufacturer document.
| Part number | IXTP01N100D |
|---|---|
| Manufacturer | IXYS (now Littelfuse) |
| File Size | 384.50 KB |
| Description | N-Channel MOSFET |
| Download | IXTP01N100D Download (PDF) |
|
|
|
