MID145-12A3

IGBT

IXYS Corporation

Image	Manufacturer	P/N	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	IXYS Corporation	MID145-12A3	MID145-12A3	IGBT MODULE 1200V 160A 700W Y4M5	DigiKey	0	6 units	$47.3	🛒 Buy Now

Download Datasheet (201.52 KB)

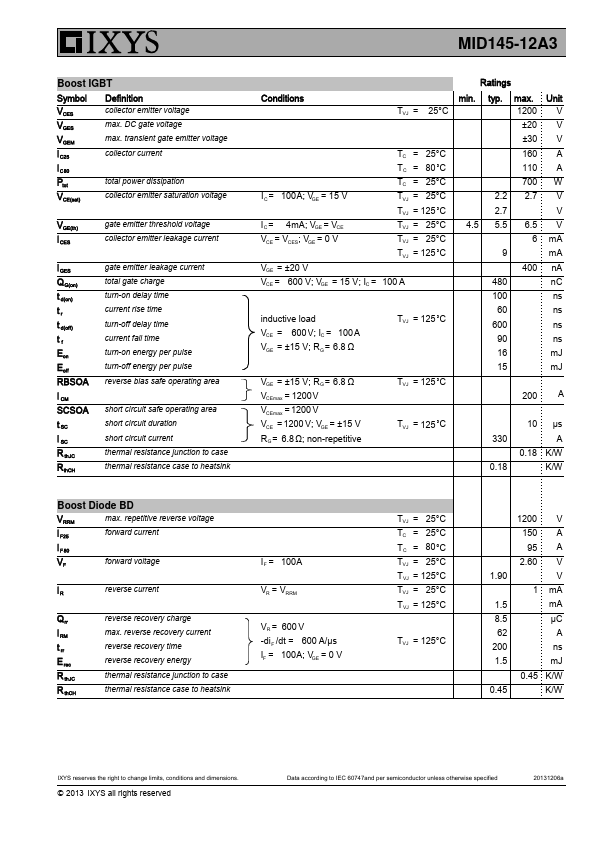

MID145-12A3 Datasheet Preview — Preview of MID145-12A3 Datasheet

Datasheet Details

Part number:

MID145-12A3

Manufacturer:

IXYS Corporation

File Size:

201.52 KB

Description:

Igbt.
IGBT (NPT) Module Boost Chopper + free wheeling Diode Part number MID145-12A3 MID145-12A3 VCES I C.
25 VCE(sat) = = = 1200 V 160 A 2.2 V 4 5 Features / Advantages: * NPT IGBT technology * low satur.

✔ MID145-12A3 Features

/ Advantages:
NPT IGBT technology
low saturation voltage
low switching losses
switching frequency up to 30 kHz
square RBSOA, no latch up
high short circuit ca

✔ MID145-12A3 Application

AC motor drives
Solar inverter
Medical equipment
Uninterruptible power supply
Air-conditioning sy
