MID-11422 - SIDE LOOK PACKAGE NPN PHOTODETECTOR

Unity Opto Technology

📥 Download Datasheet

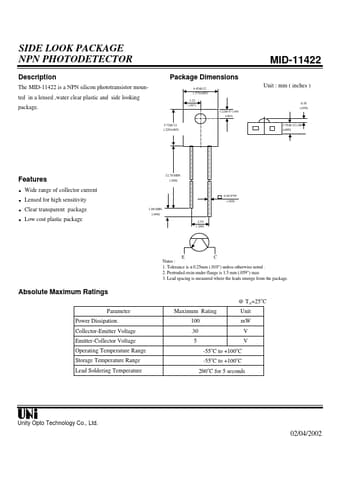

MID-11422 Datasheet Preview — Preview of MID-11422 PDF

datasheet Preview Page 2

Datasheet Details

Part number: MID-11422
Manufacturer: Unity Opto Technology
File Size: 30.41 KB
Datasheet: MID-11422-UnityOptoTechnology.pdf
Description: SIDE LOOK PACKAGE NPN PHOTODETECTOR

MID-11422 Product details

Description

The MID-11422 is a NPN silicon phototransistor mounted in a lensed ,water clear plastic and side looking package.

Features

l l l l 12.70 MIN. (.500) Wide range of collector current Lensed for high sensitivity Clear transparent package Low cost plastic package 1.00 MIN. (.040) 2.54 (.100) 0.50 TYP. (.020) E C Notes : 1. Tolerance is ± 0.25mm (.010") unless otherwise noted . 2. Protruded resin under flange is 1.5 mm (.059") max 3. Lead spacing is measured where the leads emerge from the package. Absolute Maximum Ratings @ TA=25 C Parameter Power Dissipation Collector-Emitter Voltage Emitter-Collector Voltage Opera.
