MID-14H22

SIDE LOOK PACKAGE NPN PHOTOTRANSISTOR

MID-14H22 Features

* l l l l 4.12 (.162) 1.66 ± .08 (.065±.003) Wide range of collector current Lensed for high sensitivity 60° 1.31 ± .12 (.052±.005) 0.50 TYP. (.020) Low cost plastic package For 850nm IR 14.30MIN (.563) .80 ± .02 (.031±.001) 1.00MIN (.039) 2.54 (.100) E C Notes : 1. All dimensions are in mil

MID-14H22 General Description

The MID-14H22 is a NPN silicon phototransistor mounted in a lensed ,black plastic and side looking package. 4.00 ± .08 (.158±.003) 1.80 1.80 (.071) (.071) φ 1.50 (.059) MID-14H22 Package Dimensions Unit: mm ( inches ) 1.22 .048 1.10 ±.80 (.043±.032) 0.75 ± 0.8 (.030±.032) 1.50 ± .08 (.059±.032) .

MID-14H22 Datasheet (30.21 KB)

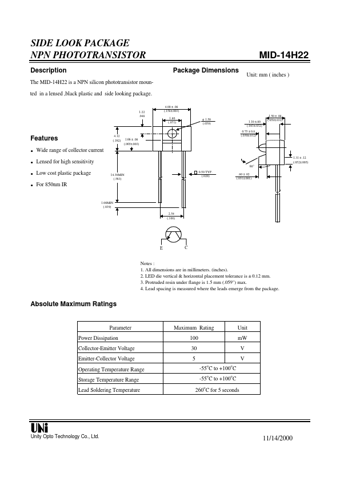

Preview of MID-14H22 PDF

Datasheet Details

Part number:

MID-14H22

Manufacturer:

Unity Opto Technology

File Size:

30.21 KB

Description:

Side look package npn phototransistor.
