MID-13A45 SIDE LOOK PACKAGE NPN PHOTOTRSNSISTOR

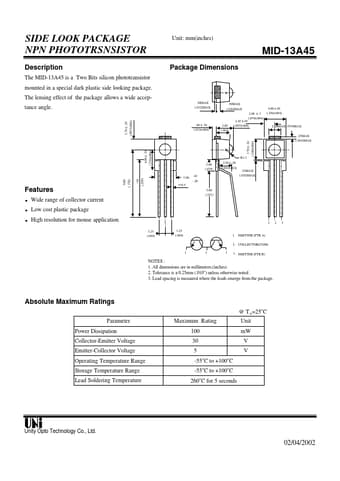

The MID-13A45 is a Two Bits silicon phototransistor mounted in a special dark plastic side looking package. The lensing effect of the package allows a wide acceptance angle. 1.70 ± .10 (.067±.004) Unit: mm(inches) MID-13A45 Package Dimensions .30MAX (.012)MAX .50MAX (.020)MAX .80 ± .10 (.032±.0.

MID-13A45 Features

* l l l Wide range of collector current Low cost plastic package High resolution for mouse application 1.25 (.049) 1.25 (.049) 1 2 1 2 3 3 EMITTER (PTR A) COLLECTOR(COM) EMITTER (PTR B) 1 2 3 9.60 (.378) 7.60 (.299) NOTES : 1. All dimensions are in millimeters.(inches). 2. Tolerance is ± 0.25mm (.
