MID-14422 Datasheet - Unity Opto Technology

MID-14422 SIDE LOOK PACKAGE NPN PHOTOTRANSISTOR

The MID-14422 is a NPN silicon phototransistor mounted in a lensed ,water clear plastic and side looking package. 1.22 .048 4.00 ± .08 (.158±.003) 1.80 1.80 (.071) (.071) φ 1.50 (.059) MID-14422 Package Dimensions Unit: mm ( inches ) 1.10 ±.80 (.043±.032) 0.75 ± 0.8 (.030±.032) 1.50 ± .08 (.059±..

MID-14422 Features

* l l l l Wide range of collector current Lensed for high sensitivity Clear transparent package Low cost plastic package 14.30MIN (.563) 0.50 TYP. (.020) .80 ± .02 (.031±.001) 1.00MIN (.039) 2.54 (.100) C E Notes : 1. All dimensions are in millimeters. (inches). 2. LED die vertical & horizontal

MID-14422-UnityOptoTechnology.pdf

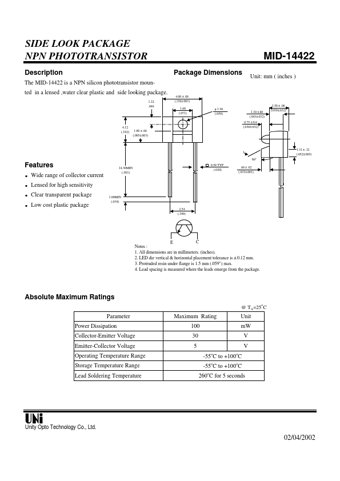

Preview of MID-14422 PDF
MID-14422 Datasheet Preview Page 2

Datasheet Details

Part number:

MID-14422

Manufacturer:

Unity Opto Technology

File Size:

30.42 KB

Description:

Side look package npn phototransistor.
