P5N50 IXTP5N50P

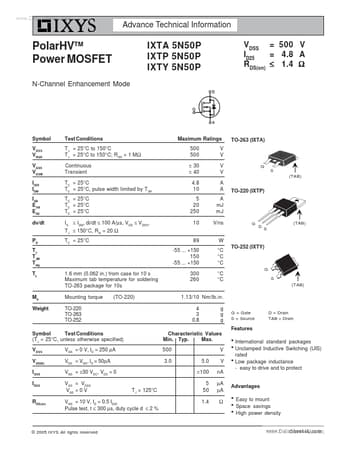

www.DataSheet4U.com Advance Technical Information PolarHVTM Power MOSFET N-Channel Enhancement Mode IXTA 5N50P IXTP 5N50P IXTY 5N50P VDSS = 500 V = 4.8 A ID25 RDS(on) ≤ 1.4 Ω Symbol VDSS VDGR VGSS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ VDSS, TJ ≤ 150°C, RG = 20 Ω TC = 25°C Maximum R.

P5N50 Features

* z z z International standard packages Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect Advantages z z z VGS = 10 V, ID = 0.5 ID25 Pulse test, t ≤ 300 μs, duty cycle d ≤ 2 % Easy to mount Space savings High power density © 2005 IXYS All rights rese
