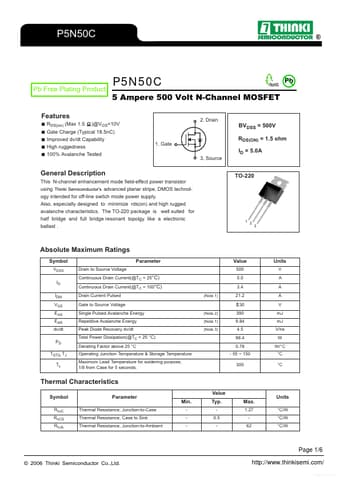

Part number: P5N50C
Manufacturer: Thinki Semiconductor
File Size: 909.31KB
Download: 📄 Datasheet
Description: 5 Ampere 500 Volt N-Channel MOSFET
This N-channel enhancement mode field-effect power transistor using Thinki Semiconductor's advanced planar stripe, DMOS technology intended for off-line switch mode power supply. Also, especially designed to minimize rds(on) and high rugged avalanche.
̰ ̰ ̰ ̰ ̰
RDS(on) (Max 1.5 ˟ )@VGS=10V Gate Charge (Typical 18.5nC) Improved dv/dt Capability High ruggedness 100% Avalanche Tested
ඔ
2. Drain
BVDSS = 500V
̵
1. Gate
.
