CPC1718J

DC-Only Power Relay

CPC1718J Features

* 17.5ADC Load Current with 5°C/W Heat Sink

* Low 0.075 On-Resistance

* 100VP Blocking Voltage

* 2500Vrms Input/Output Isolation

* Low Thermal Impedance: JC = 0.3 °C/W

* Isolated, Low Thermal Impedance Ceramic Pad for Heat Sink Applications

CPC1718J General Description

IXYS Integrated Circuits brings OptoMOS® technology, reliability and compact size to a new family of high-power Solid State Relays. As part of this family, the CPC1718J single-pole normally open (1-Form-A) DC Solid State Power Relay employs optically coupled MOSFET technology to provide 2500Vrms of .

CPC1718J Datasheet (173.15 KB)

Rating: 1 ★ (6 votes)

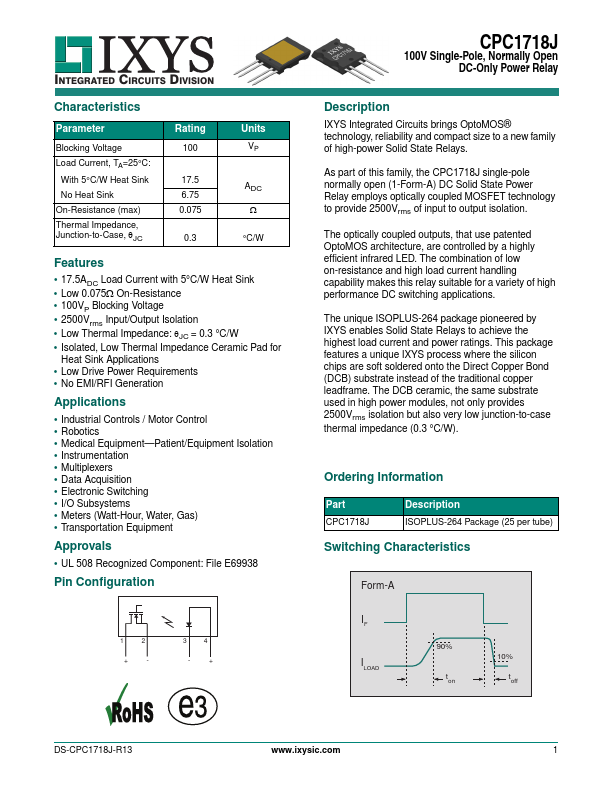

Preview of CPC1718J PDF

Datasheet Details

Part number:

CPC1718J

Manufacturer:

IXYS

File Size:

173.15 KB

Description:

Dc-only power relay.
INTEGRATED CIRCUITS DIVISION Characteristics Parameter Blocking Voltage Load Current, TA=25°C: With 5°C/W Heat Sink No Heat Sink On-Resistance (max) .

📁 Related Datasheet

CPC1718 DC-Only Power Relay (IXYS)

CPC1718 DC Power Relay (Clare)

CPC1705 4-Pin Power SIP Relay (IXYS)

CPC1705Y 4-Pin Power SIP Relay (IXYS)

CPC1706 DC Power SIP Relay (IXYS)

CPC1706 Normally Open 4-Pin OptoMOS DC Power SIP Relay (Clare)

CPC1706Y DC Power SIP Relay (IXYS)

CPC1708 DC-Only Power Relay (IXYS)

CPC1708 DC Power Relay (Clare)

CPC1708J DC-Only Power Relay (IXYS)

Stock and price

Distributor
Sanken Electric Co Ltd
NR117K
973 In Stock
Qty : 79 units
Unit Price : $0.89

TAGS

CPC1718J DC-Only Power Relay IXYS

Image Gallery

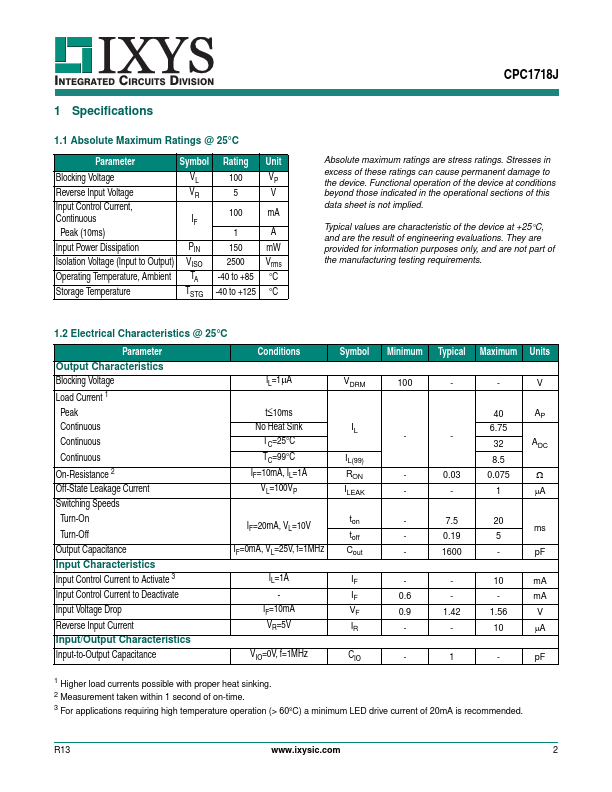

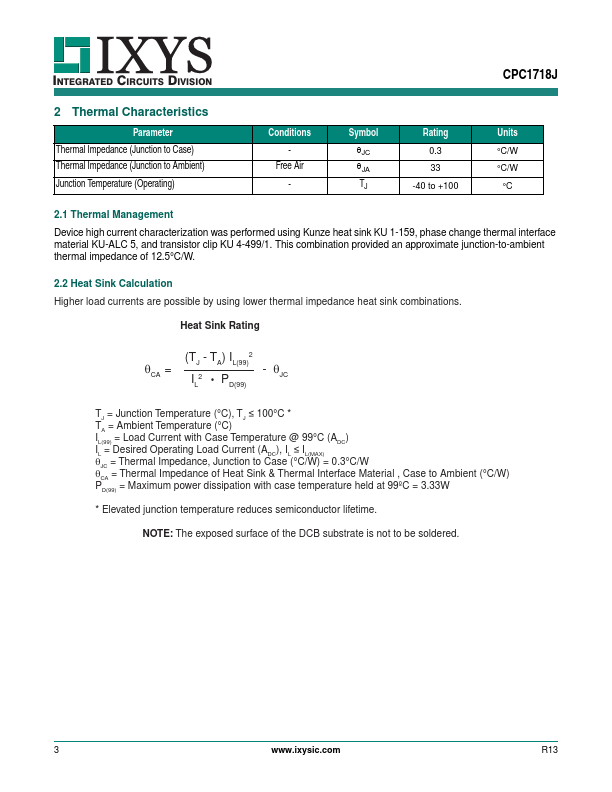

CPC1718J Datasheet Preview Page 2 CPC1718J Datasheet Preview Page 3
