CPC5001G, CPC5001 - 1-Channel Each Direction Digital Optical Isolator

IXYS

📥 Download Datasheet

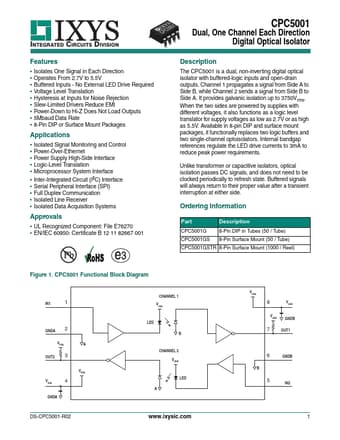

CPC5001G Datasheet Preview — This datasheet PDF includes multiple part numbers: CPC5001G, CPC5001. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CPC5001G, CPC5001
Manufacturer	IXYS
File Size	208.36 KB
Description	1-Channel Each Direction Digital Optical Isolator
Datasheet	CPC5001_IXYS.pdf
Note	This datasheet PDF includes multiple part numbers: CPC5001G, CPC5001. Please refer to the document for exact specifications by model.

CPC5001G Product details

Description

The CPC5001 is a dual, non-inverting digital optical isolator with buffered-logic inputs and open-drain outputs.

Features

Isolates One Signal in Each Direction.
Operates From 2.7V to 5.5V.
Buffered Inputs - No External LED Drive Required.
Voltage Level Translation.
Hysteresis at Inputs for Noise Rejection.
Slew-Limited Drivers Reduce EMI.
Power-Down to Hi-Z Does Not Load Outputs.
5Mbaud Data Rate.
8-Pin DIP or Surface Mount Packages.
