CPC5002 - Dual High-Speed Open-Drain Digital Optical Isolator

IXYS

📥 Download Datasheet

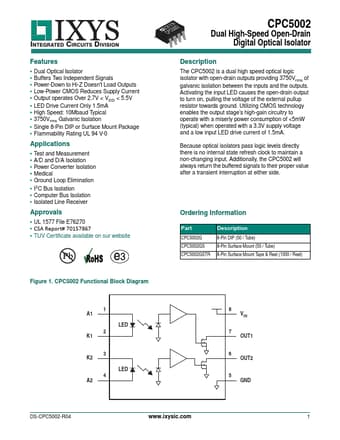

CPC5002 Datasheet Preview — Preview of CPC5002 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CPC5002
Manufacturer	IXYS
File Size	297.33 KB
Description	Dual High-Speed Open-Drain Digital Optical Isolator
Datasheet	CPC5002_IXYS.pdf

CPC5002 Product details

Description

The CPC5002 is a dual high speed optical logic isolator with open-drain outputs providing 3750Vrms of galvanic isolation between the inputs and the outputs.

Features

Dual Optical Isolator.
Buffers Two Independent Signals.
Power-Down to Hi-Z Doesn't Load Outputs.
Low-Power CMOS Reduces Supply Current.
Output operates Over 2.7V < VDD < 5.5V.
LED Drive Current Only 1.5mA.
High Speed: 10Mbaud Typical.
3750Vrms Galvanic Isolation.
Single 8-Pin DIP or Surface Mount Package.
Flammability Rating UL 94 V-0.
