CS20-25moT1 Datasheet - IXYS

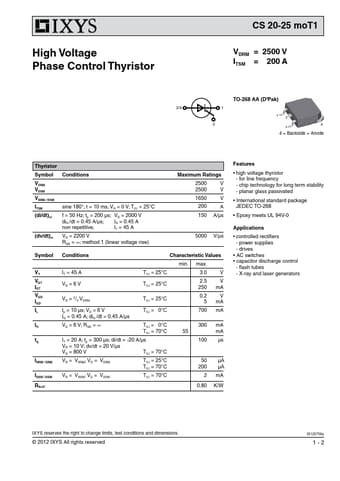

CS20-25moT1 High Voltage Phase Control Thyristor

High Voltage Phase Control Thyristor CS 20-25 moT1 VDRM = 2500 V ITSM = 200 A TO-268 AA (D3Pak) 2/4 1 2 34 4 = Backside = Anode Thyristor Symbol VDRM VDSM VRRM / RSM ITSM (di/dt)cr (dv/dt)cr Conditions sine 180°; t = 10 ms; VR = 0 V; TVJ = 25°C f = 50 Hz; tp = 200 µs; VD = 2000 V diG /dt = 0.45 A/µs; IG = 0.45 A non repetitive; IT = 45 A VD = 2200 V RGK = ∞; method 1 (linear voltage rise) Maximum Ratings 2500 2500 V V 1650 V 200 A 150 A/µs 5000 V/µs Symbol VT VGT IGT VG.

CS20-25moT1 Datasheet (91.53 KB)
