CS60-16io1R - Thyristor

CS60-16io1R Description

Thyristor Single Thyristor Part number CS60-16io1R CS60-16io1R VRRM = 1600 V I TAV = 60 A VT = 1.14 V 2 1 3 Backside: isolated .

CS60-16io1R Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip

CS60-16io1R Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: ISOPLUS247
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Epoxy meets UL

📥 Download Datasheet

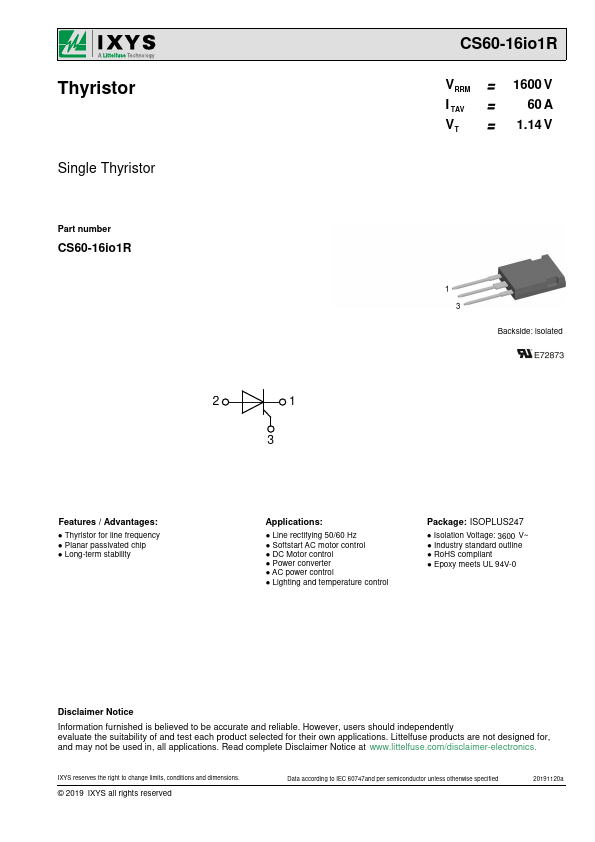

Preview of CS60-16io1R PDF

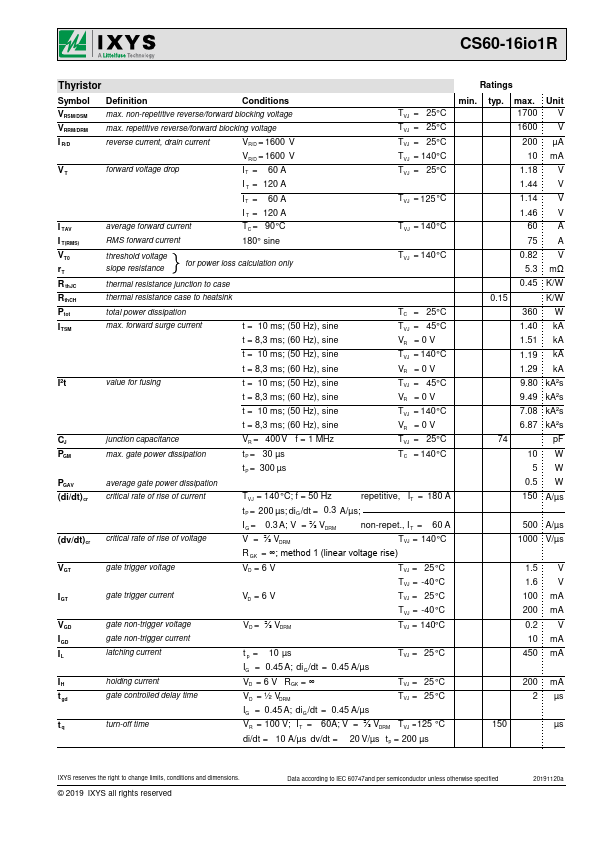

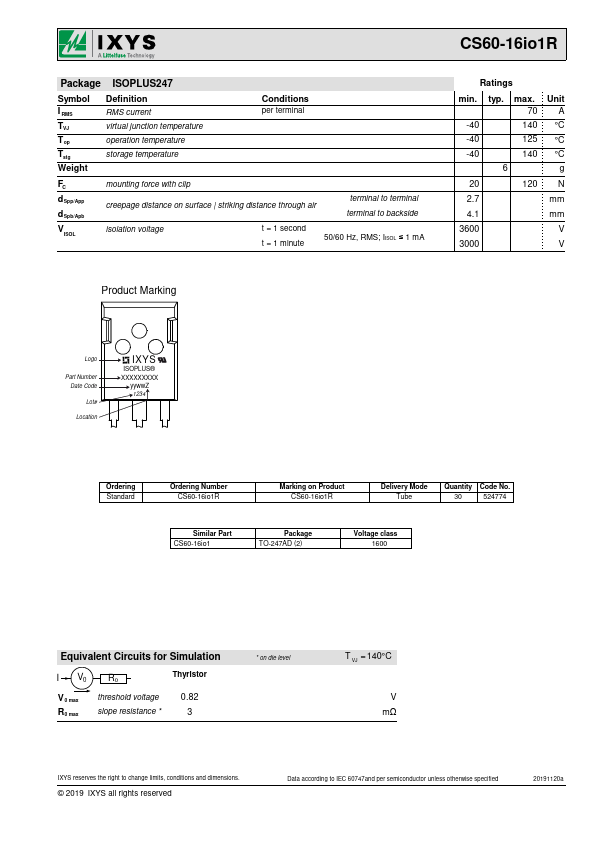

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CS60-16io1R
Manufacturer
IXYS
File Size
397.12 KB
Datasheet
CS60-16io1R-IXYS.pdf
Description
Thyristor
