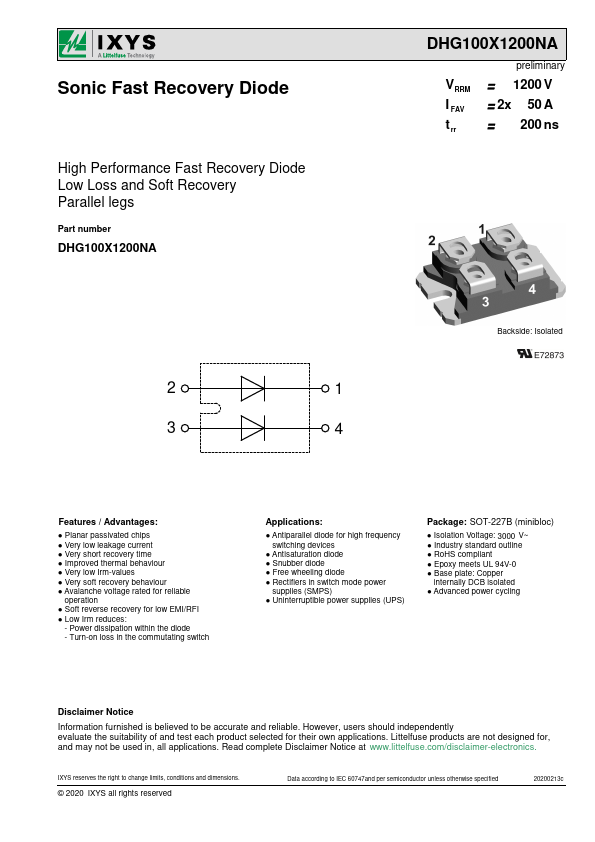

DHG100X1200NA - Sonic Fast Recovery Diode

IXYS

DHG100X1200NA Datasheet Preview — Preview of DHG100X1200NA PDF

Datasheet Details

Part number	DHG100X1200NA
Manufacturer	IXYS
File Size	509.71 KB
Description	Sonic Fast Recovery Diode
Datasheet	DHG100X1200NA-IXYS.pdf

DHG100X1200NA Product details

Description

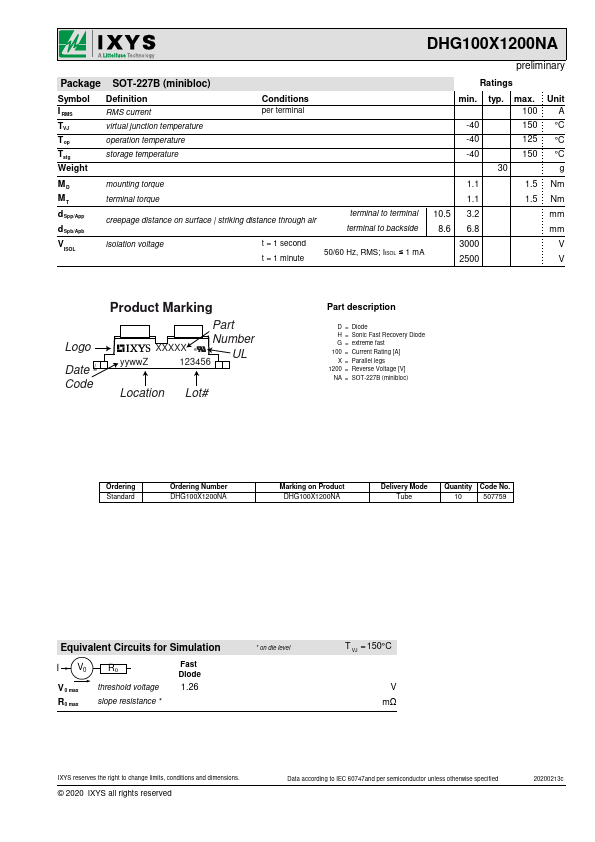

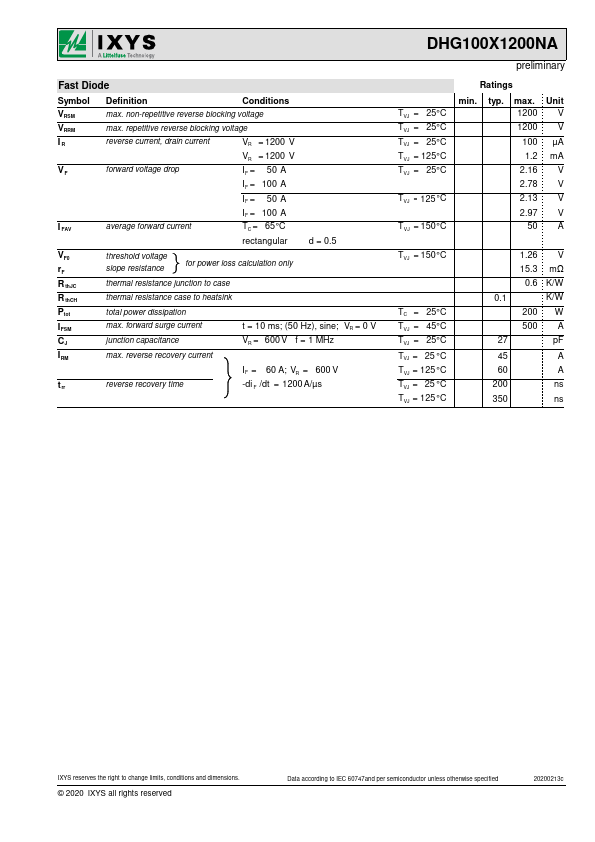

D = Diode H = Sonic Fast Recovery Diode G = extreme fast 100 = Current Rating [A] X = Parallel legs 1200 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DHG100X1200NA Marking on Product DHG100X1200NA Delivery Mode Tube Quantity Code No.10 507759 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 1.26 on die level T VJ = 150°C V mΩ IXYS reserves the right to change limits, conditions

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
