DHG100X600NA, High Performance Fast Recovery Diode

Sonic Fast Recovery Diode High Performance Fast Recovery Diode Low Loss and Soft Recovery Parallel legs Part number DHG100X600NA 21 34 DHG100X600NA .

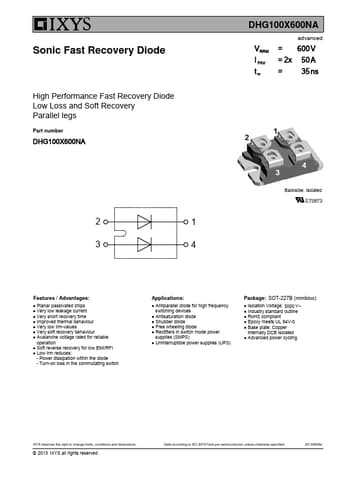

datasheet Preview Page 1 from Datasheet4u.com

DHG100X600NA-IXYS.pdf

DHG100X600NA Datasheet Preview — Preview of DHG100X600NA PDF

Datasheet Details

Part number:

DHG100X600NA

Manufacturer:

IXYS

File Size:

110.16 KB

Description:

High Performance Fast Recovery Diode

Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI

Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode
* Rectifiers in switch mode power supplies (SMPS)
* Uninterruptible power supplies (UPS) Package: SOT-227B (minibloc)
* Isolation Voltage: 3000 V~
