DHG10I1200PM

High Performance Fast Recovery Diode

DHG10I1200PM Features

* / Advantages:

* Planar passivated chips

* Very low leakage current

* Very short recovery time

* Improved thermal behaviour

* Very low Irm-values

* Very soft recovery behaviour

* Avalanche voltage rated for reliable operation

* Soft reverse recovery for low EMI/RFI

DHG10I1200PM Datasheet (102.06 KB)

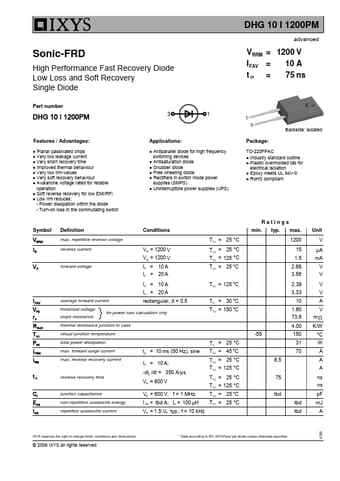

Preview of DHG10I1200PM PDF

Datasheet Details

Part number:

DHG10I1200PM

Manufacturer:

IXYS

File Size:

102.06 KB

Description:

High performance fast recovery diode.
Sonic-FRD High Performance Fast Recovery Diode Low Loss and Soft Recovery Single Diode DHG 10 I 1200PM advanced VRRM = IFAV = t rr = 1200 V 10 A 7.
