DHG60I1200HA - Sonic Fast Recovery Diode

IXYS

The DHG60I1200HA by IXYS is a Sonic Fast Recovery Diode. Below is the official datasheet preview.

📥 Download Datasheet

DHG60I1200HA Sonic Fast Recovery Diode by IXYS - Datasheet Preview — Official preview page of the **DHG60I1200HA** Sonic Fast Recovery Diode datasheet (IXYS).

Datasheet Details

Part number	DHG60I1200HA
Manufacturer	IXYS
File Size	308.02 KB
Description	Sonic Fast Recovery Diode
Datasheet	DHG60I1200HA-IXYS.pdf
Additional preview pages of the DHG60I1200HA datasheet.

DHG60I1200HA Product details

Description

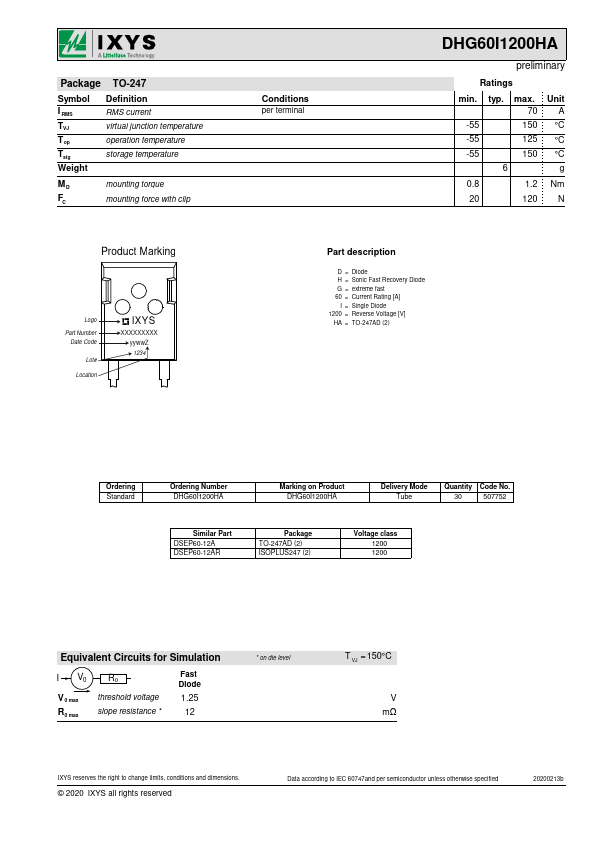

D = Diode H = Sonic Fast Recovery Diode G = extreme fast 60 = Current Rating [A] I = Single Diode 1200 = Reverse Voltage [V] HA = TO-247AD (2) Ordering Standard Ordering Number DHG60I1200HA Marking on Product DHG60I1200HA Delivery Mode Tube Quantity Code No.30 507752 Similar Part DSEP60-12A DSEP60-12AR Package TO-247AD (2) ISOPLUS247 (2) Voltage class 1200 1200 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 1.25 12

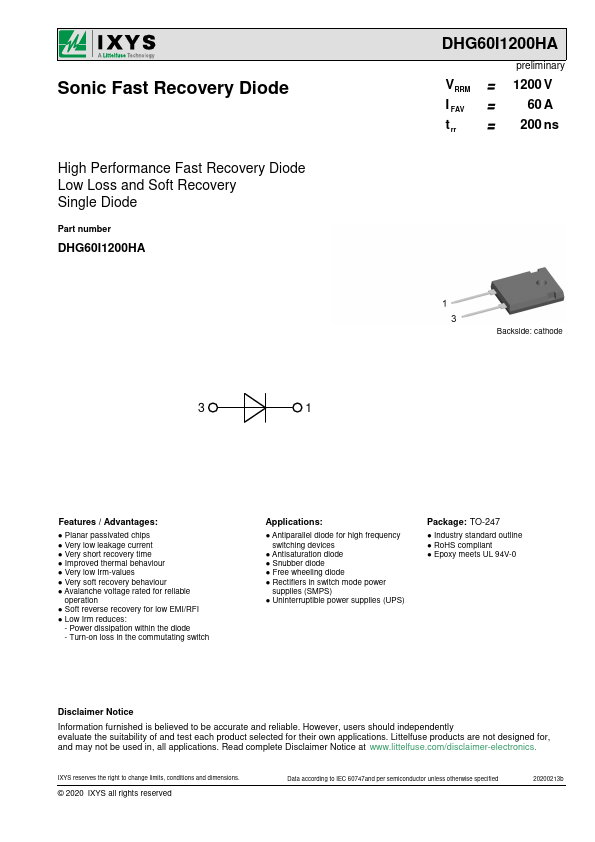

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
