DMA150E1600NA Datasheet, Rectifier, IXYS

DMA150E1600NA Features

  • Rectifier / Advantages:
  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour Applications:

PDF File Details

Part number:

DMA150E1600NA

Manufacturer:

IXYS

File Size:

542.42kb

Download:

📄 Datasheet

Description:

Standard rectifier. D = Diode M = Standard Rectifier A = (up to 1800V) 150 = Current Rating [A] E = Single Diode 1600 = Reverse Voltage [V] NA = SOT-227B

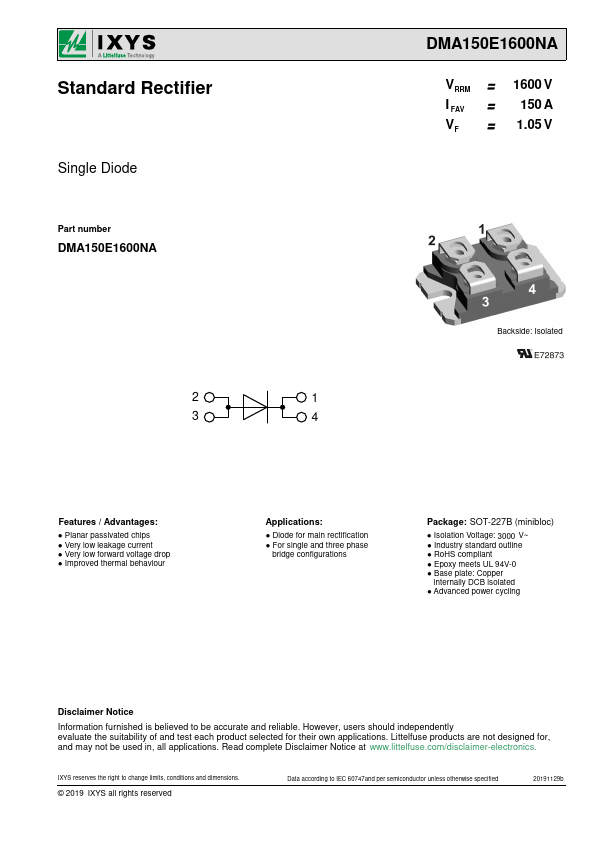

Datasheet Preview: DMA150E1600NA 📥 Download PDF (542.42kb)

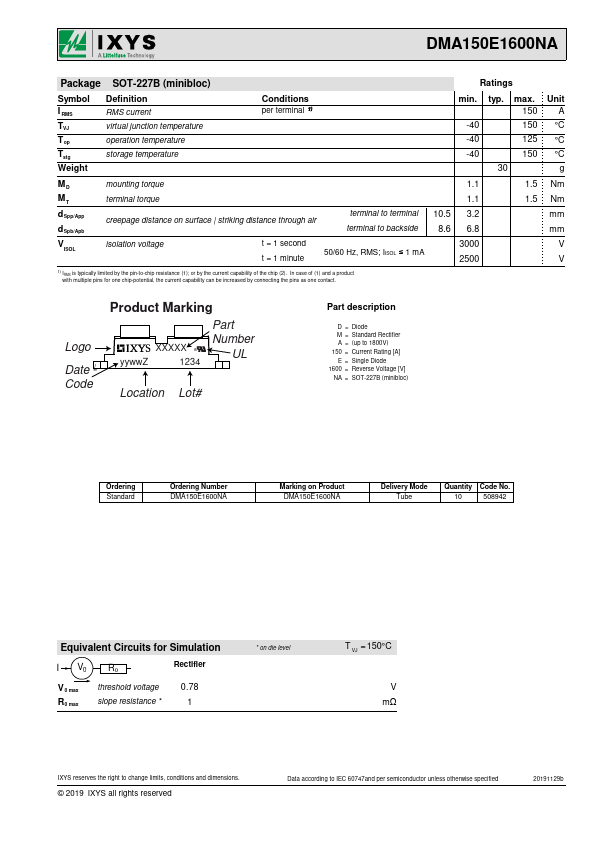

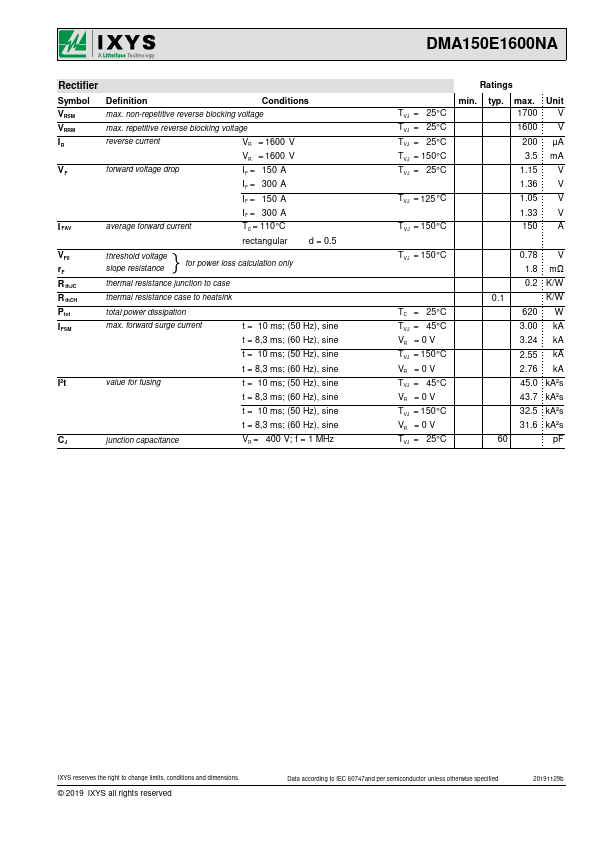

Page 2 of DMA150E1600NA Page 3 of DMA150E1600NA

DMA150E1600NA Application

  • Applications
  • Diode for main rectification
  • For single and three phase bridge configurations Package: SOT-227B (minibloc)
  • <
