DMA150YA1600NA - Standard Rectifier

📥 Download Datasheet

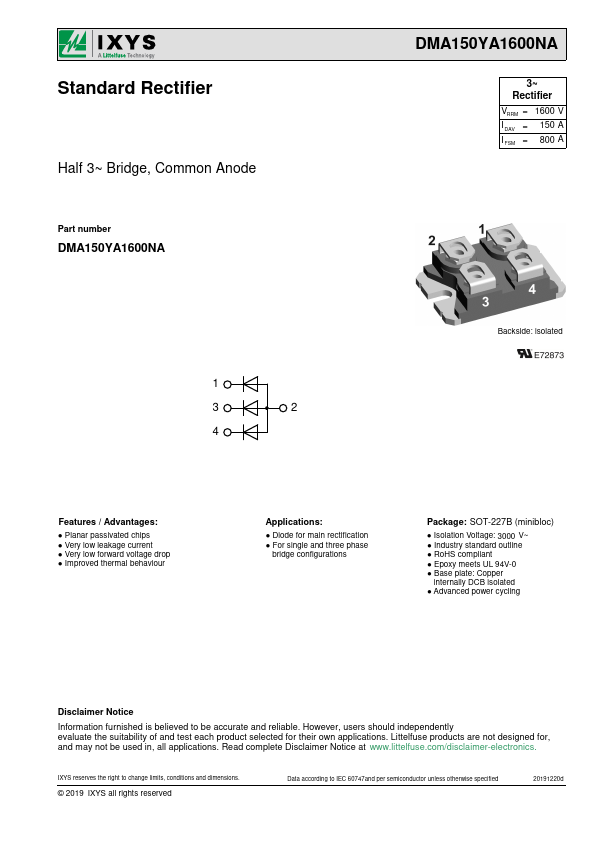

Preview of DMA150YA1600NA PDF

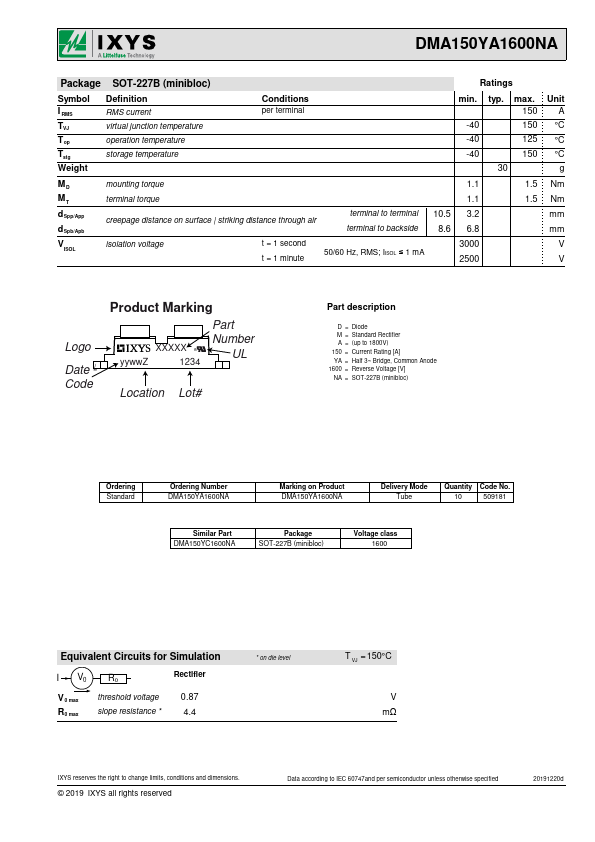

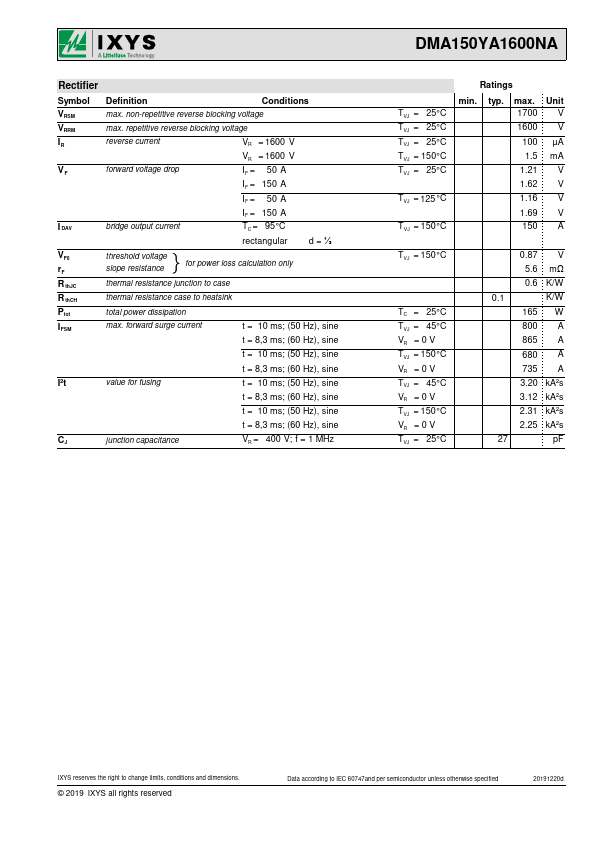

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DMA150YA1600NA
Manufacturer IXYS
File Size 530.97 KB
Description Standard Rectifier
Datasheet download datasheet DMA150YA1600NA-IXYS.pdf

DMA150YA1600NA Product details

Description

D = Diode M = Standard Rectifier A = (up to 1800V) 150 = Current Rating [A] YA = Half 3~ Bridge, Common Anode 1600 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DMA150YA1600NA Marking on Product DMA150YA1600NA Delivery Mode Tube Quantity Code No.10 509181 Similar Part DMA150YC1600NA Package SOT-227B (minibloc) Voltage class 1600 Equivalent Circuits for Simulation I V0 R0 Rectifier V 0 max R0 max threshold voltage slope resistance 0.87 4.

Features
