DMA90U1800LB - Standard Rectifier

DMA90U1800LB Description

Standard Rectifier ISOPLUS™ Surface Mount Power Device 3~ Rectifier Bridge Part number DMA90U1800LB Marking on Product: DMA90U1800LB 4/5/6 789 1/2/.
D = Diode M = Standard Rectifier A = (up to 1800V) 90 = Current Rating [A] U = 3~ Rectifier Bridge 1800 = Reverse Voltage [V] LB = SMPD-B Ordering St.

DMA90U1800LB Features

* / Advantages:
* Rectifier diode
* Isolated back surface
* Low coupling capacity between pins and heatsink
* Enlarged creepage towards heatsink

DMA90U1800LB Applications

* Line rectifying 50/60 Hz
* Drives
* SMPS
* UPS Package: SMPD
* Isolation Voltage: 3000 V~
* Industry convenient outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Backside: DCB ceramic
* Reduced weight
* Advanced po

📥 Download Datasheet

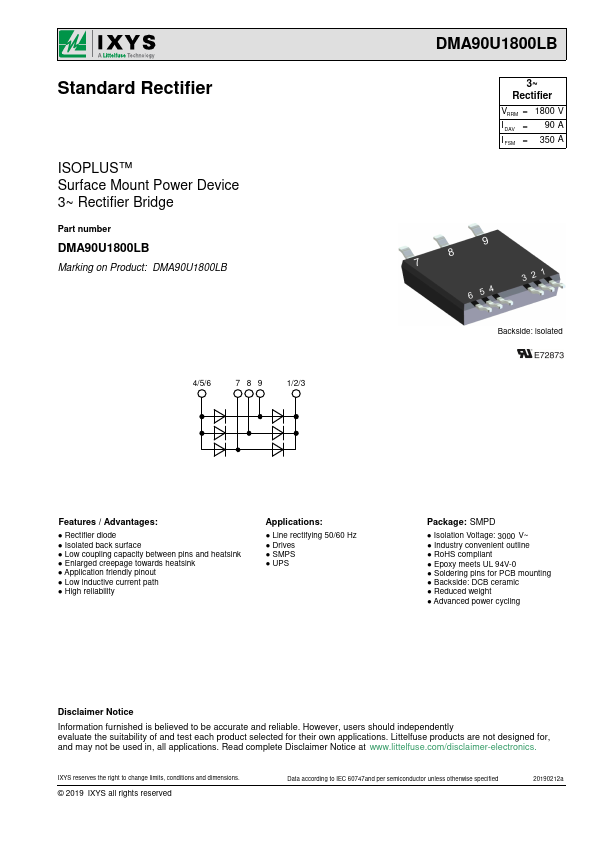

Preview of DMA90U1800LB PDF

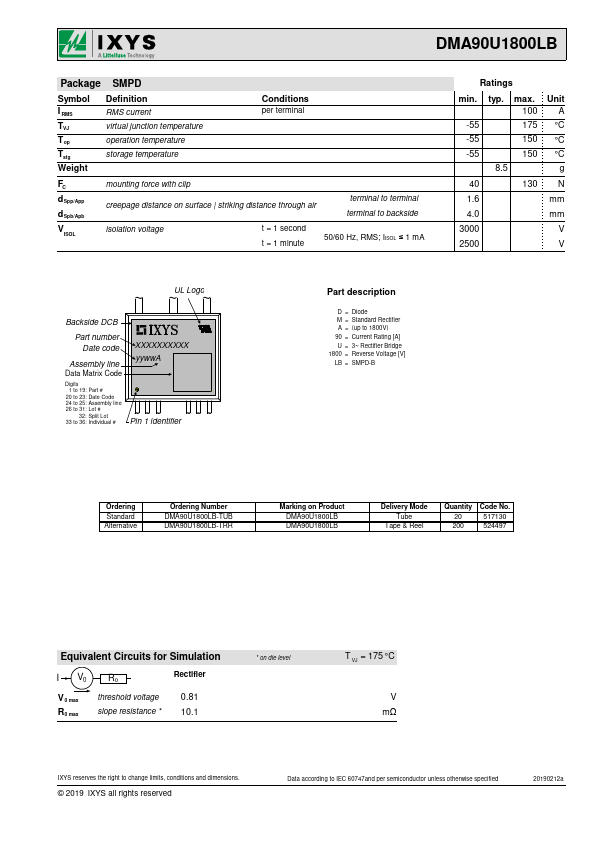

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DMA90U1800LB
Manufacturer
IXYS
File Size
222.64 KB
Datasheet
DMA90U1800LB-IXYS.pdf
Description
Standard Rectifier
