DNA120E2200KO Datasheet - IXYS

High Voltage Standard Rectifier

DNA120E2200KO Features

* / Advantages:

* Planar passivated chips

* Very low leakage current

* Very low forward voltage drop

* Improved thermal behaviour Applications:

* Diode for main rectification

* For single and three phase bridge configurations Package: ISOPLUS264

* Isolation Voltage: 3600

DNA120E2200KO General Description

D = Diode N = High Voltage Standard Rectifier A = (>= 2000V) 120 = Current Rating [A] E = Single Diode 2200 = Reverse Voltage [V] KO = ISOPLUS264 (2HV) Ordering Standard Ordering Number DNA120E2200KO Marking on Product DNA120E2200KO Delivery Mode Tube Quantity Code No. 25 523314 Equivalent C.

DNA120E2200KO Datasheet (175.48 KB)

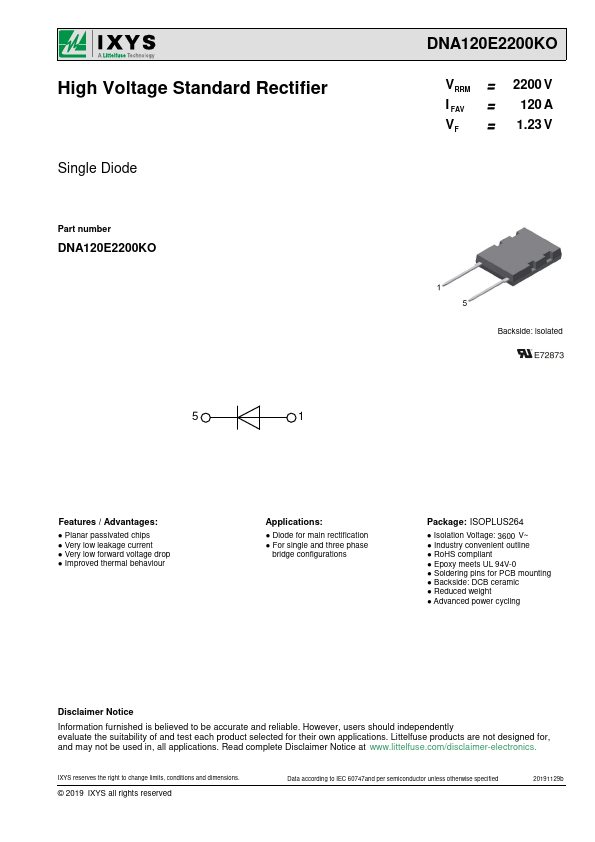

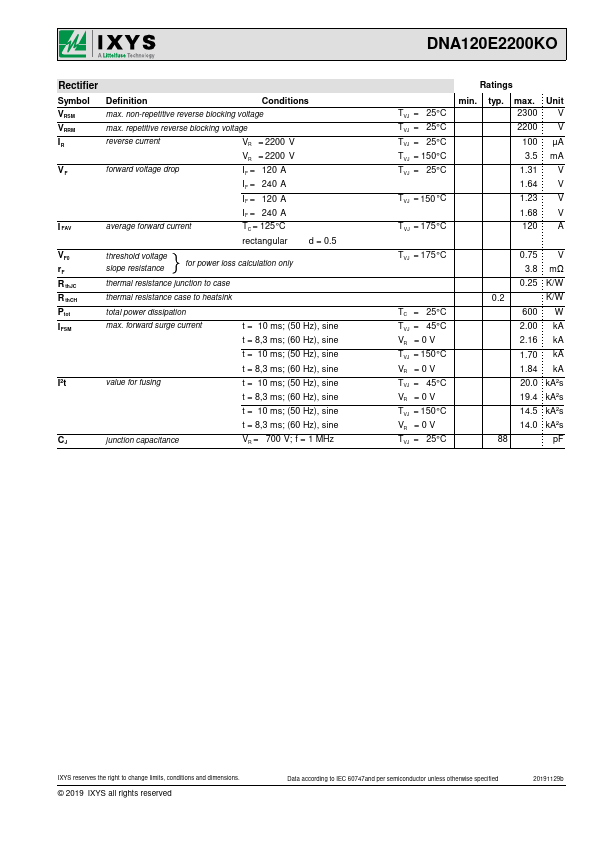

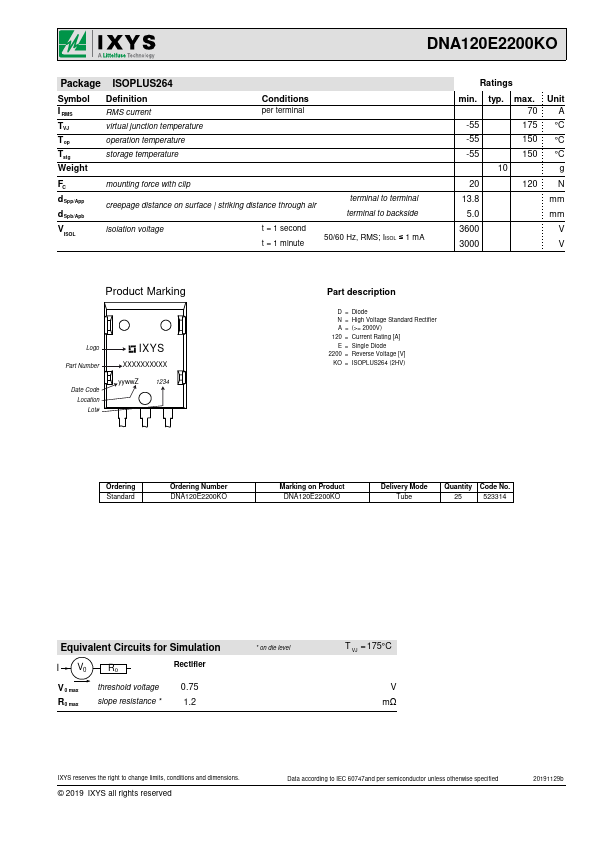

DNA120E2200KO Datasheet Preview — Preview of DNA120E2200KO PDF

Datasheet Details

Part number:

DNA120E2200KO

Manufacturer:

IXYS

File Size:

175.48 KB

Description:

High voltage standard rectifier.
High Voltage Standard Rectifier Single Diode Part number DNA120E2200KO 5 1 DNA120E2200KO VRRM = 2200 V I FAV = 120 A VF = 1.23 V Backside: is.
