DNA30E2200PZ High Voltage Standard Rectifier

IXYS

Description

High Voltage Standard Rectifier Single Diode Part number DNA30E2200PZ Marking on Product: DNA30E2200PZ 1 3 DNA30E2200PZ VRRM = 2200 V I FAV = 3.
D = Diode N = High Voltage Standard Rectifier A = (>= 2000V) 30 = Current Rating [A] E = Single Diode 2200 = Reverse Voltage [V] PZ = TO-263AB (D2Pak).

📥 Download Datasheet

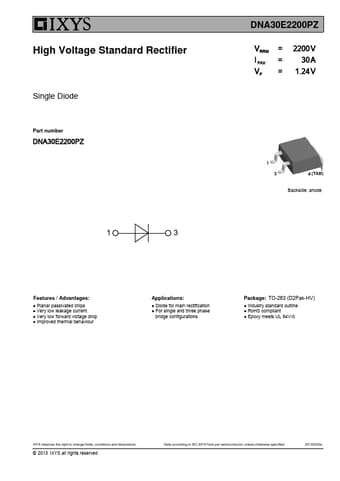

DNA30E2200PZ Datasheet Preview — Preview of DNA30E2200PZ PDF

Datasheet Specifications

Part number: DNA30E2200PZ
Manufacturer: IXYS
File Size: 438.93 KB
Datasheet: DNA30E2200PZ-IXYS.pdf
Description: High Voltage Standard Rectifier

Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop

Applications

* Diode for main rectification
* For single and three phase bridge configurations Package: TO-263 (D2Pak-HV)
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0 Disclaimer Notice Information furnished is believed to be accurate and reliable. However, users shou
