DNA1ZPH Datasheet - Sharp

DNA1ZPH, PQ120DNA1ZPH

PQxxxDNA1ZPH Series PQxxxDNA1ZPH Series Compact Surface Mount type Low Power-Loss Voltage Regulators .

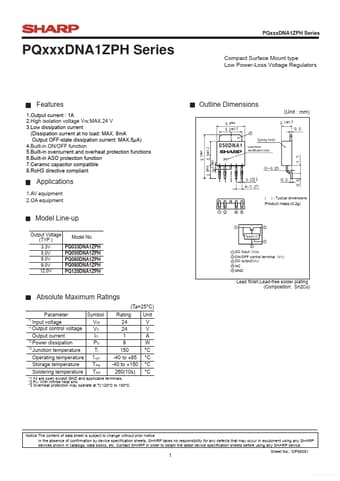

datasheet Preview Page 1 from Datasheet4u.com

DNA1ZPH-Sharp.pdf

DNA1ZPH Datasheet Preview — Preview of DNA1ZPH PDF

Datasheet Details

Part number:

DNA1ZPH

Manufacturer:

Sharp

File Size:

187.73 KB

Description:

PQ120DNA1ZPH

Features

* 1.Output current : 1A 2.High isolation voltage VIN:MAX.24 V 3.Low dissipation current (Dissipation current at no load: MAX. 8mA Output OFF-state dissipation current: MAX.5μA) 4.Built-in ON/OFF function 5.Built-in overcurrent and overheat protection functions 6.Built-in ASO protection function 7.Cera

Applications

* 1.AV equipment 2.OA equipment 1 2 4 5 4-(1.27) ( ) : Typical dimensions Product mass:(0.2g) Model Line-up 1 3 Output Voltage (TYP. ) 3.3V 5.0V 8.0V 9.0V 12.0V Model No. PQ033DNA1ZPH PQ050DNA1ZPH PQ080DNA1ZPH PQ090DNA1ZPH PQ120DNA1ZPH 1 2 3 4 5 Specific IC 2 5 DC input (VIN) ON/OFF control ter
