DSA30C100PB Schottky Diode

DSA30C100PB Description

Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSA30C100PB 1 23 DSA30C100PB VRRM I FAV V.

DSA30C100PB Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSA30C100PB Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-220
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0 IXYS reserves the right to change limits, conditions and dimensions. © 2013 IXYS all rights res

📥 Download Datasheet

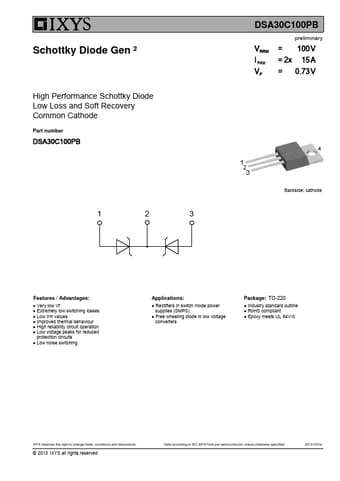

Preview of DSA30C100PB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSA30C100PB
Manufacturer
IXYS
File Size
90.63 KB
Datasheet
DSA30C100PB-IXYS.pdf
Description
Schottky Diode
