DSA30C150PC - Schottky Diode

DSA30C150PC Description

Schottky Diode High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSA30C150PC Marking on Product: DSA30C150PC 1 2.
D = Diode S = Schottky Diode A = low VF 30 = Current Rating [A] C = Common Cathode 150 = Reverse Voltage [V] PC = TO-263AB (D2Pak) (2) Ordering Stand.

DSA30C150PC Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSA30C150PC Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-263 (D2Pak)
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0 Disclaimer Notice Information furnished is believed to be accurate and reliable. Howeve

📥 Download Datasheet

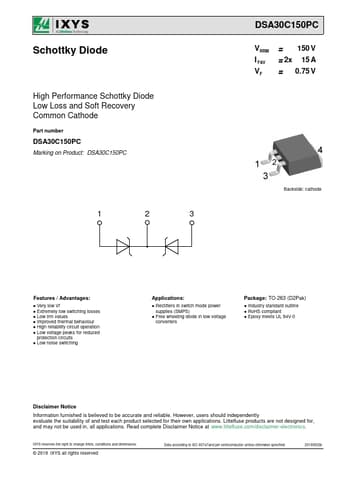

Preview of DSA30C150PC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSA30C150PC
Manufacturer
IXYS
File Size
184.65 KB
Datasheet
DSA30C150PC-IXYS.pdf
Description
Schottky Diode
