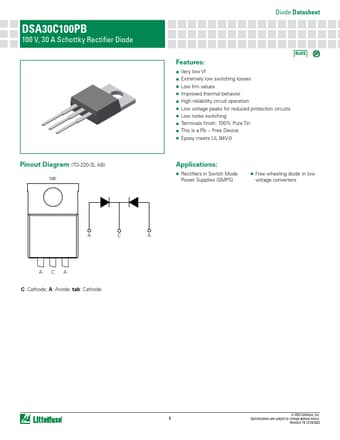

DSA30C100PB
100 V, 30 A Schottky Rectifier Diode
Pinout Diagram (TO-220-3L AB)
tab
Diode Datasheet
RoHS Pb
Features:
■ Very low Vf ■ Extremely low switching losses ■ Low Irm values ■ Improved thermal behavior ■ High reliability circuit operation ■ Low voltage peaks for reduced protection circuits ■ Low noise switching ■ Terminals finish: 100% Pure Tin ■ This is a Pb − Free Device ■ Epoxy meets UL 94V-0
Applications:
■ Rectifiers in Switch Mode Power Supplies (SMPS)
■ Free wheeling diode in low voltage converters
A
C
A
ACA C: Cathode; A: Anode; tab: Cathode
© 2022 Littelfuse, Inc.
1
Specifications are subject to change without notice.
Revised: TK.
DSA30C100PB Datasheet
