DSA30C100HB - Schottky Diode

Datasheet Summary

Features

  • / Advantages:.
  • Very low Vf.
  • Extremely low switching losses.
  • Low Irm values.
  • Improved thermal behaviour.
  • High reliability circuit operation.
  • Low voltage peaks for reduced protection circuits.
  • Low noise switching.

📥 Download Datasheet

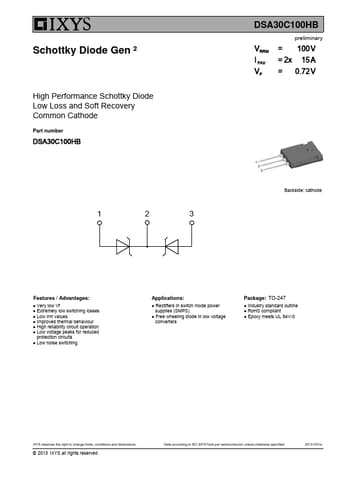

Datasheet preview – DSA30C100HB

Datasheet Details

Part number DSA30C100HB
Manufacturer IXYS
File Size 83.02 KB
Description Schottky Diode
Datasheet download datasheet DSA30C100HB Datasheet
Additional preview pages of the DSA30C100HB datasheet.

📁 Similar Datasheet

  • DSA30C100HB - 2 x 15A High-Performance Schottky Diode (Littelfuse)
  • DSA30C100PB - 30A Schottky Rectifier Diode (Littelfuse)
  • DSA30I150PA - 30A Schottky Rectifier Diode (Littelfuse)
  • DSA321SC - Mobile communications (ETC)
  • DSA321SCA - VC-TCXO/TCXO (KDS)
  • DSA321SCM - SMD VC-TCXO/TCXO (KDS)
  • DSA321SD - GPS / Industrial Radio system (ETC)
  • DSA3402 - Silicon PNP Transistor (Panasonic)
  • DSA35 - Rectifier Diode Avalanche Diode (IXYS Corporation)
  • DSA35-12A - Rectifier Diode Avalanche Diode (IXYS Corporation)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text
Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSA30C100HB 1 23 DSA30C100HB VRRM I FAV VF preliminary = 100 V = 2x 15 A = 0.72 V Backside: cathode Features / Advantages: ● Very low Vf ● Extremely low switching losses ● Low Irm values ● Improved thermal behaviour ● High reliability circuit operation ● Low voltage peaks for reduced protection circuits ● Low noise switching Applications: ● Rectifiers in switch mode power supplies (SMPS) ● Free wheeling diode in low voltage converters Package: TO-247 ● Industry standard outline ● RoHS compliant ● Epoxy meets UL 94V-0 IXYS reserves the right to change limits, conditions and dimensions.
