DSA70C100HB Schottky Diode

DSA70C100HB Description

Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSA70C100HB 1 23 DSA70C100HB VRRM I FAV V.

DSA70C100HB Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSA70C100HB Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-247
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0 IXYS reserves the right to change limits, conditions and dimensions. © 2013 IXYS all rights res

📥 Download Datasheet

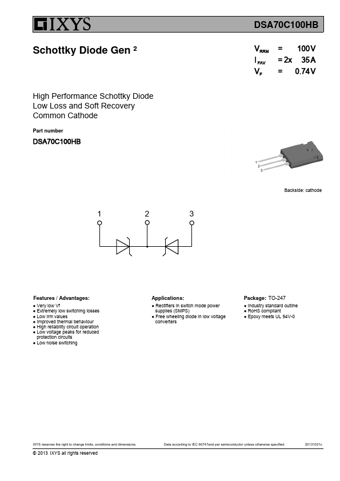

Preview of DSA70C100HB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSA70C100HB
Manufacturer
IXYS
File Size
105.47 KB
Datasheet
DSA70C100HB-IXYS.pdf
Description
Schottky Diode
