DSA75-16B Rectifier Diode

Rectifier Diode Avalanche Diode DS 75 DSA 75 DSI 75 DSAI 75 VRRM = 800-1800 V IF(RMS) = 160 A IF(AV)M = 110 A VRSM V V x(BR)minÿ VRRM VV 900 www.DataSheet41U3.0c0om - 800 1200 1300 1700 1900 1300 1760 1950 1200 1600 1800 x Only for Avalanche Diodes Anode on stud DS 75-08B DS 75-12B DSA 75-12B DSA 75-16B DSA 75-18B Cathode on stud DSI 75-08B DSI 75-12B DSAI 75-12B DSAI 75-16B DSAI 75-18B Symbol IF(RMS) I F(AV)M PRSM IFSM I2t TVJ TVJM Tstg Md Weight Test Conditions TVJ = TVJM T c.

DSA75-16B Features

* q International standard package, JEDEC DO-203 AB (DO-5) q Planar glassivated chips Applications q High power rectifiers q Field supply for DC motors q Power supplies Advantages q Space and weight savings q Simple mounting q Improved temperature and power cycling q Reduced protection circuits Dimens

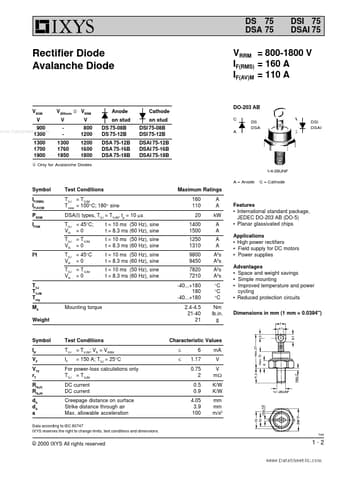

DSA75_IXYSCorporation.pdf
