IX4427 - 1.5-Ampere Dual Low-Side Ultrafast MOSFET

This page provides the datasheet information for the IX4427, a member of the IX4426 1.5-Ampere Dual Low-Side Ultrafast MOSFET family.

Datasheet Summary

Description

The IX4426, IX4427, and IX4428 are dual high-speed, low-side gate drivers.

Each of the two outputs can source and sink 1.5A of peak current with rise and fall times of less than 10ns.

The inputs of each driver are TTL and CMOS compatible, and are virtually immune to latch-up.

Features

  • 1.5A Peak Output Current.
  • Wide Operating Voltage Range: 4.5V to 35V.
  • -40°C to +125°C Operating Temperature Range.
  • Latch-up Protected to 1.5A.
  • TTL and CMOS Compatible Inputs.
  • Fast Rise and Fall Times.
  • Low Power Consumption.

📥 Download Datasheet

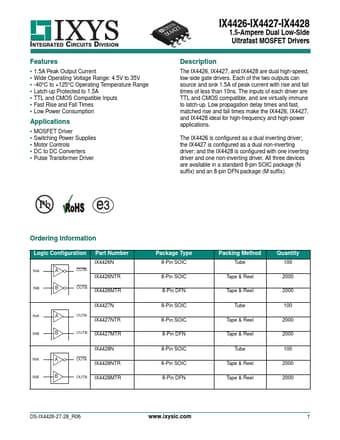

Datasheet preview – IX4427

Datasheet Details

Part number IX4427
Manufacturer IXYS
File Size 247.26 KB
Description 1.5-Ampere Dual Low-Side Ultrafast MOSFET
Datasheet download datasheet IX4427 Datasheet
Additional preview pages of the IX4427 datasheet.

📁 Similar Datasheet

  • IX4341 - 5A Dual Inverting Low-Side MOSFET Driver (Littelfuse)
  • IX4R11 - 4A Half-Bridge Driver (IXYS Corporation)
Other Datasheets by IXYS
  • IX4423 - (IX4423 - IX4425) 3-Ampere Dual Low-Side Ultrafast MOSFET Drivers
  • IX4424 - (IX4423 - IX4425) 3-Ampere Dual Low-Side Ultrafast MOSFET Drivers
  • IX4425 - (IX4423 - IX4425) 3-Ampere Dual Low-Side Ultrafast MOSFET Drivers
  • IX4426 - 1.5-Ampere Dual Low-Side Ultrafast MOSFET
  • IX4428 - 1.5-Ampere Dual Low-Side Ultrafast MOSFET
  • IX4310T - Low-Side MOSFET Driver
  • IX4340 - Dual Low-Side MOSFET Driver
  • IX4340N - Dual Low-Side MOSFET Driver

Full PDF Text Transcription

Click to expand full text
INTEGRATED CIRCUITS DIVISION Features • 1.5A Peak Output Current • Wide Operating Voltage Range: 4.5V to 35V • -40°C to +125°C Operating Temperature Range • Latch-up Protected to 1.5A • TTL and CMOS Compatible Inputs • Fast Rise and Fall Times • Low Power Consumption Applications • MOSFET Driver • Switching Power Supplies • Motor Controls • DC to DC Converters • Pulse Transformer Driver IX4426-IX4427-IX4428 1.5-Ampere Dual Low-Side Ultrafast MOSFET Drivers Description The IX4426, IX4427, and IX4428 are dual high-speed, low-side gate drivers. Each of the two outputs can source and sink 1.5A of peak current with rise and fall times of less than 10ns. The inputs of each driver are TTL and CMOS compatible, and are virtually immune to latch-up.
